“In 1988 the company Logitech, in Glasgow, Scotland, is taken over.”
- No mention of Struers on logitech.uk.com history page. Coincidence / unrelated?
- “Logitech was founded in 1965. The company was developed from a research project into advanced semiconductor materials at the University of Glasgow.”
Lapping machines
| Image | Model | Description | Platen | Platen diameter | Power | Size class | Polish method | Notes |
|---|---|---|---|---|---|---|---|---|

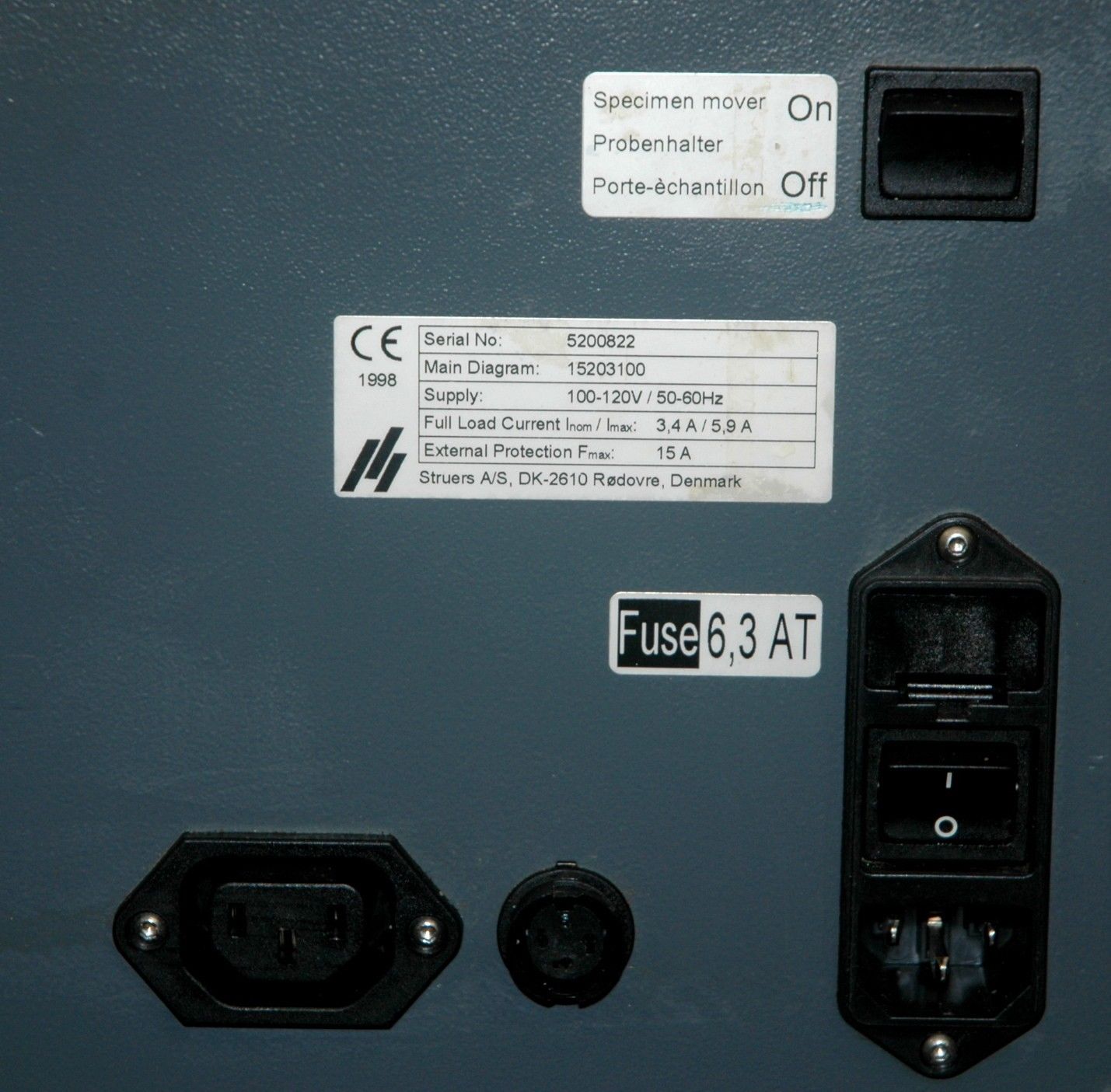

  [eBay furexph 181493240930] | 15163100 | |||||||
| AbraPlan-20 | ||||||||
| AbraPol-20 | ||||||||
  [eBay bid-servicellc 251612196399] | Abramin | “150/300 rpm, specimen holder motor 180 rpm…Variable force applied to specimens from 30 to 450…10 in. dia. wheel.” | ||||||
| DAP-7 | ||||||||
| Hexamatic | ||||||||
 [LaboPol brochure] | LaboPol-1 | Desktop | Simple platen Parallel arm option | single speed machine, 250 rpm | ||||
| LaboPol-2 | Desktop | Simple platen Parallel arm option | two speed machine, 250 and 500 rpm | |||||
| LaboPol-4 | Desktop | Simple platen Parallel arm option | variable speed, 12-120 rpm | |||||
  [eBay bishop9634 251578468244] | LaboPol-5 | Desktop | Simple platen Parallel arm option | variable speed, 50-500 rpm | ||||
| LaboPol-6 | Desktop | Simple platen Parallel arm option | variable speed, 120-1200 rpm | |||||
| LaboPol-21 | Desktop | Simple platen Parallel arm option | two discs, single speed, 250 rpm | |||||
 [LaboPol brochure] | LaboPol-25 | Desktop | Simple platen Parallel arm option | two discs, variable speed, 50-500 rpm | ||||
 [LaboPol brochure] | LaboPol-35 | Desktop | Simple platen Parallel arm option | variable speed, 50-500 rpm | ||||
 With Pedemax-2 [eBay hi-techstuff 180963732684]  Above: [ebay:hgrindustrialsrpls:261466607008] | Planopol-2 | |||||||
  [eBay bamko1 301188976608] | Planopol V | 4010188? | ||||||
  [eBay frankbacon 221470525925] | Rotopol-1 | |||||||
| Rotopol-2 | ||||||||
 [ebay buyhitek 360528561461] | Rotopol 21 | |||||||
| RotoPol-22 | ||||||||
  With RotoForce-4 [eBay bigboots482011 221556858585] | RotoPol-25 | |||||||
| Pedimen S | ||||||||
| STELLAPOL | ||||||||
| TegraPol-15 | looks like a nice unit with LCD, serial port, pump etc Hot cell option |
|||||||
| Tegramin |
Lapping accessories
| Image | Model | Description | For polisher | Notes |
|---|---|---|---|---|
 [LaboPol brochure] | LaboForce-1 | Parallel arm | LaboPol series | speed of 8 rpm |
 [LaboPol brochure] | LaboForce-3 | Parallel arm | LaboPol series | speed of 250 rpm |
 With LaboPol-35 [LaboPol brochure] | LaboForce-Mi | Parallel arm | LaboPol-35 | speed of 4 rpm |
| LaboDoser | Slurry feed | Generic? | “Dosing unit for LaboPol with LaboForce. With built-in timer and 4 peristaltic pumps for dosing of diamond suspension, lubricant and all-in-one products such as DiaPro and DiaDuo.” | |
| Multidoser | Slurry feed | Generic? | Lapping compound mixer | |
| Movipol | Controller? | Polish and etch controller | ||
| With Planopol-2 [eBay hi-techstuff 180963732684] | Pedemax-2 | Parallel arm | Planopol-2, Planopol-V | 2762445? |
 [eBay frankbacon 221470525925] | Pedemat | |||
| RotoForce-3 | Parallel arm | |||
| With RotoPol-25 [eBay bigboots482011 221556858585] | RotoForce-4 | Parallel arm | ||
 [LaboPol brochure] | SystemAble | Jig | LaboPol series? | For thinning specimins |
| TegraForce-1 | Controller? | TegraPol-15 | Polish and etch controller |
