Curated collection of secure MCUs etc. Focus on security mesh and related features

All

Image Link IC
Vendor
IC
Model
Die marking Application Found in Mesh Notes

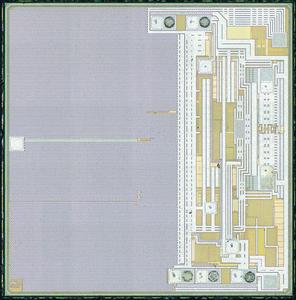

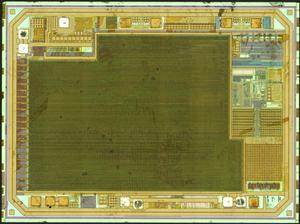

siliconpr0n.org_map_atmel_ataes132-mah-er-t_single_atmel_ataes132-mah-er-t_mcmaster_mz_mit20x.thumb.jpg Link Atmel ATAES132

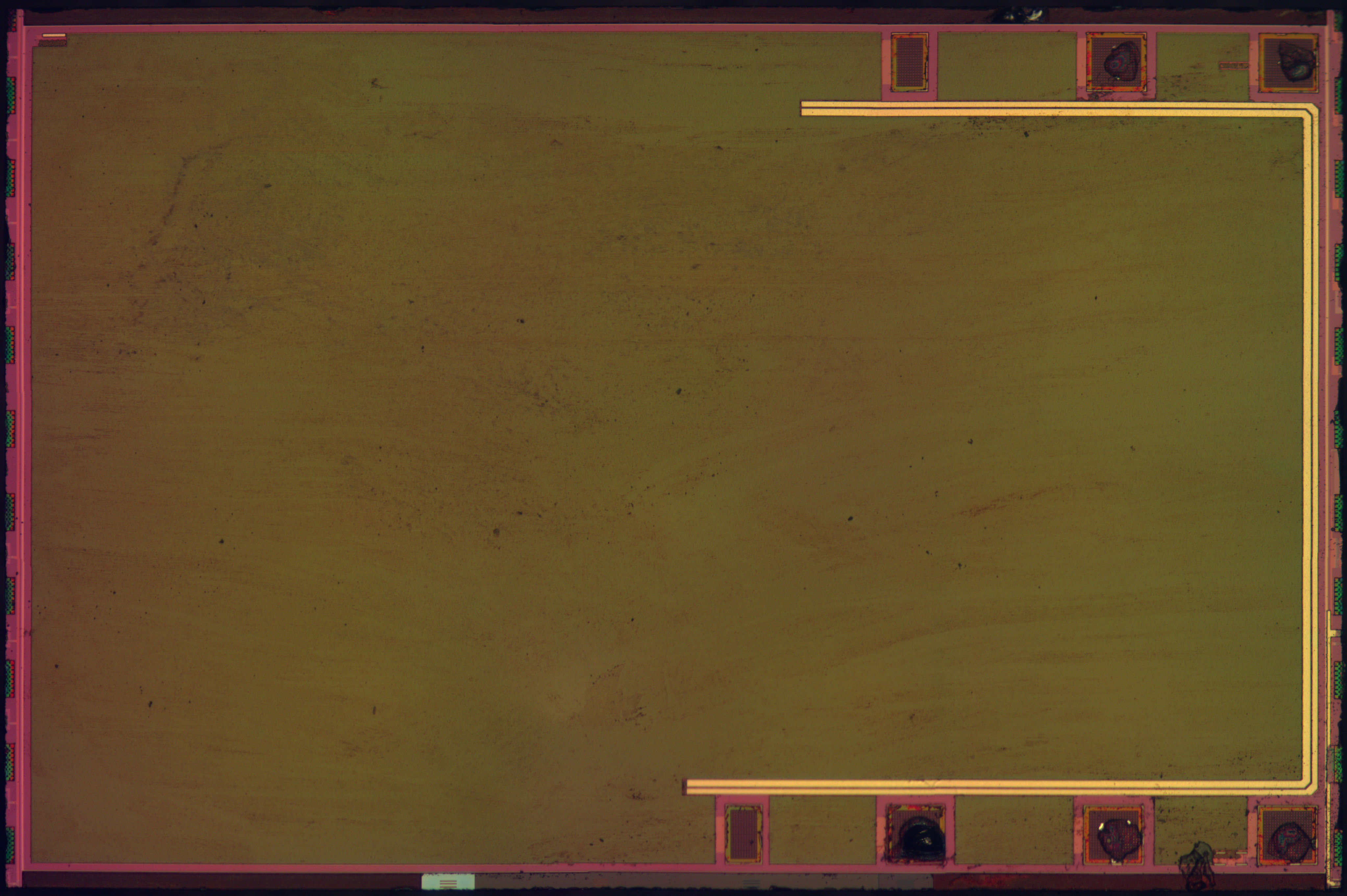

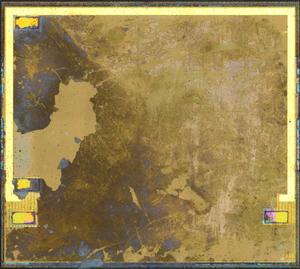

siliconpr0n.org_map_atmel_atecc108a_single_atmel_atecc108a_mcmaster_mz_mit20x.thumb.jpg Link Atmel ATECC108A SE Die id 66C

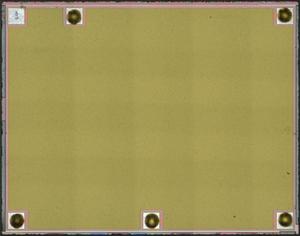

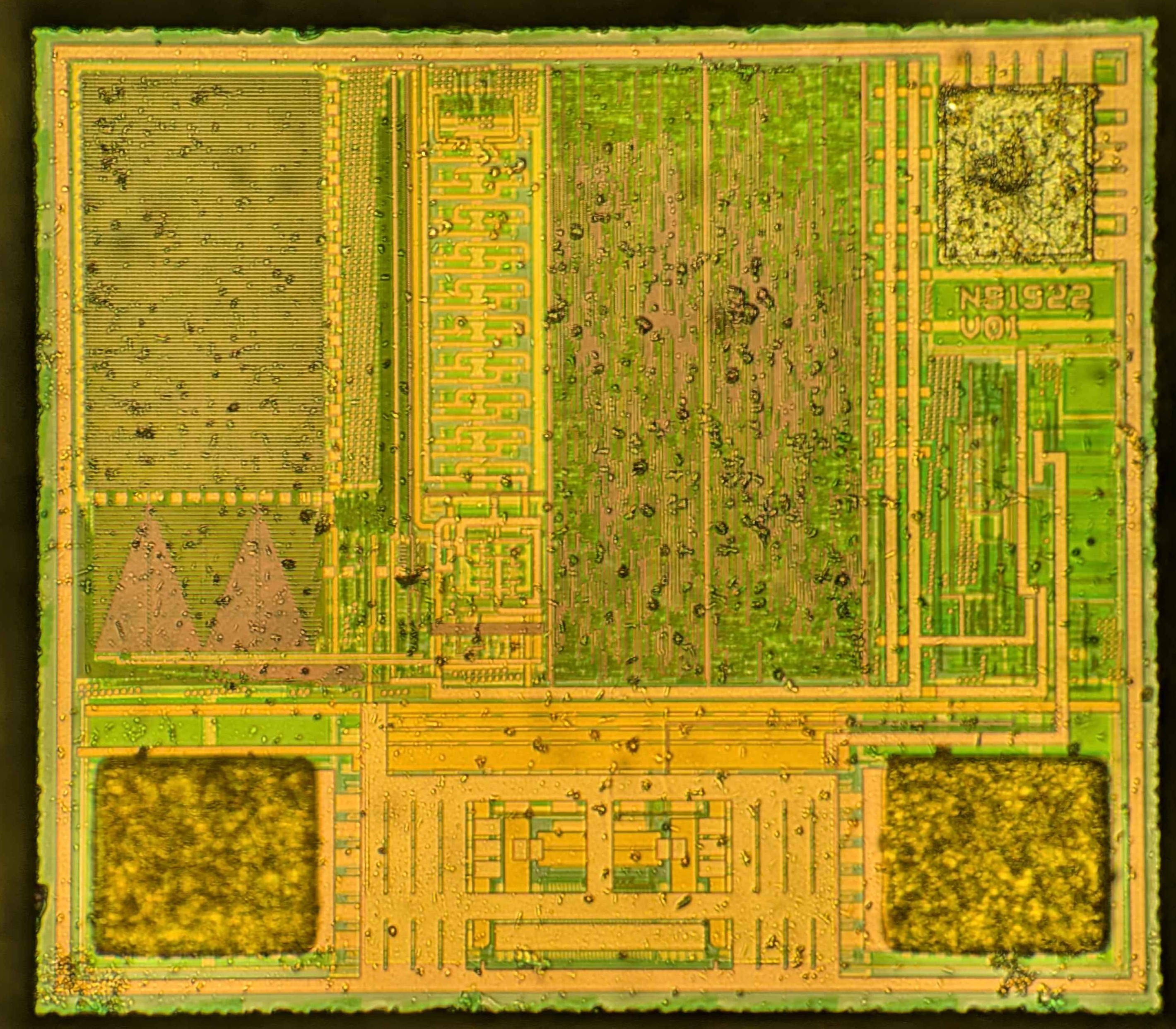

siliconpr0n.org_map_atmel_atecc508a_single_atmel_atecc508a_h1kari_mz_x2500.thumb.jpg Link Atmel ATECC508A SE Die id 66E

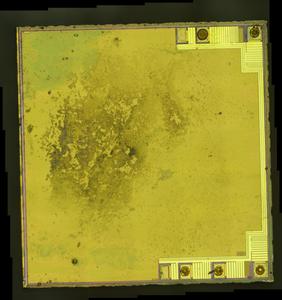

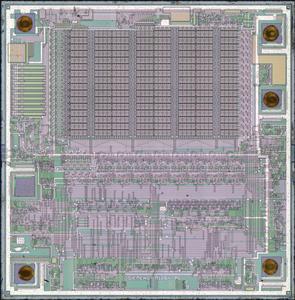

siliconpr0n.org_map_atmel_atecc608a_single_atmel_atecc608a_h1kari_mz_1500x.thumb.jpg Link Atmel ATECC608A SE Die id 66J

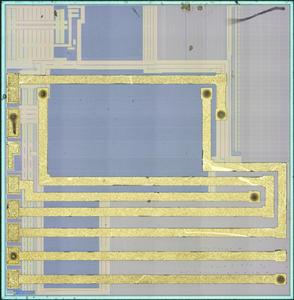

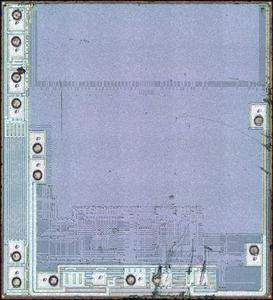

siliconpr0n.org_map_atmel_atsha204-mah-da-t_single_atmel_atsha204-mah-da-t_mcmaster_mz_mit20x.thumb.jpg Link Atmel ATSHA204

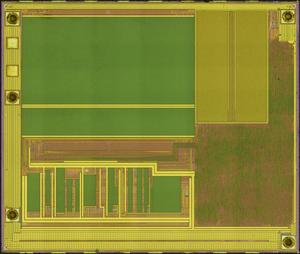

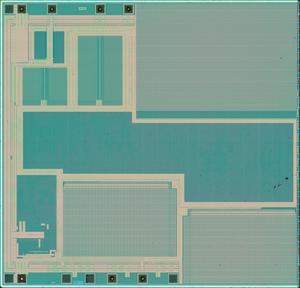

siliconpr0n.org_map_atmel_at88sc0104ca-sh_single_atmel_at88sc0104ca-sh_mcmaster_mz_mit20x.thumb.jpg Link Atmel AT88SC0104CA

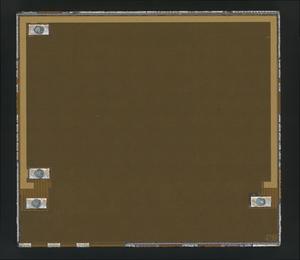

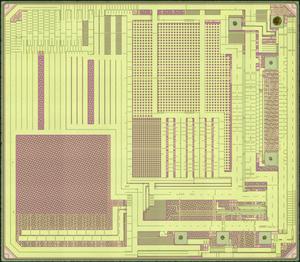

siliconpr0n.org_map_atmel_at90sc12818rcu_single_atmel_at90sc12818rcu_mcmaster_mz_mit20x.thumb.jpg Link Atmel AT90SC12818RCU MCU

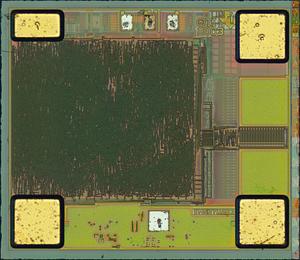

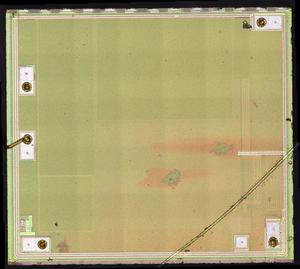

siliconpr0n.org_map_atmel_at90sc12836rct_single_atmel_at90sc12836rct_mcmaster_mz_mit20x.thumb.jpg Link Atmel AT90SC12836RCT MCU
siliconpr0n.org_map_atmel_sc144144ct_single_atmel_sc144144ct_mcmaster_mz_mit20x.thumb.jpg Link Atmel AT90SC144144CT MCU
siliconpr0n.org_map_unknown_fls328k28da_single_unknown_fls328k28da_mcmaster_mz_mit20x.thumb.jpg Link FLS FLS328K28DA SIM Globe Telecom SIM
siliconpr0n.org_map_unknown_fls202k18da_single_unknown_fls202k18da_mcmaster_mz_mit20x.thumb.jpg Link FLS FLS202K18DA SIM Vodaphone SIM
1-2.jpg Link FLS? GPFLY132K09DA SE
siliconpr0n.org_map_fudan-micro_fm15160_single_fudan-micro_fm15160_mcmaster_mz_mit20x.thumb.jpg Link Fudan Micro FM15160
siliconpr0n.org_map_gemalto_mgy-u1092721_single_gemalto_mgy-u1092721_mcmaster_mz_mit20x.thumb.jpg Link Gemalto MGY-U1092721 CC Citigold Mastercard CC
siliconpr0n.org_map_infineon_slb9673xu20_single_infineon_slb9673xu20_mcmaster_mz_mit20x_crop.thumb.jpg Link Infineon SLB9673XU20 TPM None?
siliconpr0n.org_map_infineon_sls32aia010_single_infineon_sls32aia010_mcmaster_mz_mit20x.thumb.jpg Lnk Infineon SLS32AIA010 MCU ““Infineon SLS32AIA010MH/S/K/L OPTIGA™ Trust M is a high-end security solution that provides an anchor of trust for connecting Internet of Things (IoT) devices to the cloud, giving every IoT device its own unique identity”
siliconpr0n.org_map_infineon_unknown1_single_infineon_unknown1_mcmaster_mit20x.thumb.jpg Link Infineon Unknown CC Red CC
siliconpr0n.org_map_infineon_slb9665tt20_single_infineon_slb9665tt20_mcmaster_mz_mit20x.thumb.jpg Link Infineon SLB9665TT20 TPM “Infineon’s Trusted Platform Module (TPM 2.0) SLB 9665 is a fully standard compliant TPM based on the latest Trusted Computing Group (TCG) specification 2.0.”
siliconpr0n.org_map_infineon_slb9645tt12fw_single_infineon_slb9645tt12fw_mcmaster_mz_mit20x.thumb.jpg Link Infineon SLB9645TT12 TPM
siliconpr0n.org_map_infineon_sle77_single_infineon_sle77_infosecdj_mz_lmplan50x.thumb.jpg Link Infineon SLE77 XXX
siliconpr0n.org_map_infineon_slm9670aq20fw1311xt_single_infineon_slm9670aq20fw1311xt_mcmaster_mz_mit20x.thumb.jpg Link Infineon SLM9670AQ XXX
siliconpr0n.org_map_infineon_m7690-b1_single_infineon_m7690-b1_mcmaster_mz_mit20x.thumb.jpg Link infineon M7690-B1 SIM T-mobile
2023-07-23-C2: blue 4G red LTE
2023-07-23-C2: 4G microsim
siliconpr0n.org_map_infineon_m7690-g1_single_infineon_m7690-g1_mcmaster_mz_mit20x.thumb.jpg Link infineon M7690-G1 SIM Krew Mobile SIM
Cricket SIM
2023-07-23-C3: anyvoice
siliconpr0n.org_map_infineon_m7701-a1_single_infineon_m7701-a1_mcmaster_mz_mit20x.thumb.jpg Link Infineon M7701-A1 SIM Unknown SIM
siliconpr0n.org_map_linkcoresafe_lcs4110a_single_linkcoresafe_lcs4110a_mcmaster_mz_mit20x.thumb.jpg Link LinkCoreSafe LCS4110A XXX
siliconpr0n.org_map_linkcoresafe_lkt4304a_single_linkcoresafe_lkt4304a_mcmaster_mz_mit20x.thumb.jpg Link LinkCoreSafe LKT4304A XXX
siliconpr0n.org_map_linkcoresafe_lkt4110ua_single_linkcoresafe_lkt4110ua_mcmaster_mz_mit20x.thumb.jpg Link LinkCoreSafe LKT4110UA XXX
siliconpr0n.org_map_maxim_ds28e38q_single_maxim_ds28e38q_mcmaster_mz_mit20x.thumb.jpg Link Maxim DS28E38Q SE “DeepCover® Secure ECDSA Authenticator with ChipDNA PUF Protection”
siliconpr0n.org_map_modsemi_mod8id-dmcf-r_single_modsemi_mod8id-dmcf-r_mcmaster_mz_mit20x.thumb.jpg Link ModSemi MOD8ID XXX
siliconpr0n.org_map_modsemi_mod208-dmcf-r_single_modsemi_mod208-dmcf-r_mcmaster_mz_mit20x.thumb.jpg Link ModSemi MOD208 XXX
siliconpr0n.org_map_motorola_zc87214_single_motorola_zc87214_infosecdj_mz_nikon20x.thumb.jpg Link Motorola ZC87214
siliconpr0n.org_map_nxp_a7101chtk2_single_nxp_a7101chtk2_mcmaster_mz_mit20x.thumb.jpg Link NXP A7101CHTK2 SE “The A71CH is a ready-to-use solution providing a root of trust at the IC level and proven, chip-to-cloud security right out of the box. It is a platform capable of securely storing and provisioning credentials, securely connecting IoT devices to cloud services and performing cryptographic node authentication.”
siliconpr0n.org_map_nxp_mf3d23_single_nxp_mf3d23_mcmaster_orca_mz_mit20x.thumb.jpg Link NXP MF3D23 Contactless Orca card
siliconpr0n.org_map_nxp_se050a1hq1_single_nxp_se050a1hq1_mcmaster_mz_mit20x.thumb.jpg Link NXP SE050A1HQ1 SE
siliconpr0n.org_map_nxp_se050a2hq1_single_nxp_se050a2hq1_mcmaster_mz_mit20x.thumb.jpg Link NXP SE050A2HQ1 SE
siliconpr0n.org_map_nxp_se050b1hq1_single_nxp_se050b1hq1_mcmaster_mz_mit20x.thumb.jpg Link NXP SE050B1HQ1 SE
siliconpr0n.org_map_pccw_8985219_single_pccw_8985219_mcmaster_mz_mit20x.thumb.jpg Link Unknown SIM PCCW SIM
siliconpr0n.org_map_us_passport_single_us_passport_mcmaster_mz_mit20x.thumb.jpg Link Unknown Passport
siliconpr0n.org_map_siemens_m596-a1_single_siemens_m596-a1_mcmaster_mz_mit20x.thumb.jpg Link Siemens M596-A1
siliconpr0n.org_map_siemens_m1264-a1_single_siemens_m1264-a1_mcmaster_mz_mit20x.thumb.jpg Link Siemens M1264-A1 Smartcard Wayne Public Library card
siliconpr0n.org_map_st_sf1003c_single_st_sf1003c_mcmaster_mz_mit20x.thumb.jpg Link ST SF1003C SE “The STSAFE-A110 is a highly secure solution that acts as a secure element providing authentication and secure data management services to a local or remote host. It consists of a full turnkey solution with a secure operating system running on the latest generation of secure microcontrollers.”
siliconpr0n.org_map_st_k8c0a_single_st_k8c0a_mcmaster_mz_mit20x.thumb.jpg Link ST K8C0A SIM Unknown SIM
2023-07-23-SIM_tb4-bell-lte
2023-07-23-TB5_SIM-PLAIN
2023-07-23-TB2_sim-suretap
2023-07-23-TB1_sim-bell
07-23-TB3_SIM-NFC
07-23-TA3_sim-plain
2023-07-23-TZ1_SIM-VERIZON-4G-LG
2023-07-23-TZ5_SIM-TOGOCEL
siliconpr0n.org_map_st_k8h0a_single_st_k8h0a_mcmaster_mz_mit20x.thumb.jpg Link ST K8H0A SIM Verizon SIM
siliconpr0n.org_map_st_k410a_single_st_k410a_mcmaster_mz_mit20x.thumb.jpg Link ST K410A CC Brex Mastercard CC
siliconpr0n.org_map_starchip_scf335h_single_starchip_scf335h_mcmaster_mz_mit20x.thumb.jpg Link Starchip SCF335H SCF335H SIM Wind SIM
att_sim_bf_neo10x_4k.jpg Link Unknown SIM AT&T SIM Serpintine
siliconpr0n.org_map_google_fi-pc-nv-00029_single_google_fi-pc-nv-00029_mcmaster_mz_mit20x.thumb.jpg Link Unknown SIM Google FI SIM
siliconpr0n.org_map_unknown_sim-verizon-277132_single_unknown_sim-verizon-277132_mcmaster_mz_mit20x.thumb.jpg Link
Link
Unknown SIM Verizon SIM
O2 4GPP2 SIM
siliconpr0n.org_map_unknown_sim-verizon-891480_single_unknown_sim-verizon-891480_mcmaster_mit20x_crop.thumb.jpg Link
Link
Unknown SIM Verizon SIM
Koodo SIM
siliconpr0n.org_map_unknown_sim-telkomsel-6210_single_unknown_sim-telkomsel-6210_mcmaster_mz_mit20x.thumb.jpg Link Unknown SIM Telkomsel SIM
siliconpr0n.org_map_unknown_china-mobile-gpre4_single_unknown_china-mobile-gpre4_mcmaster_mz_mit20x.thumb.jpg Link Unknown SIM China Mobile GPRE4 SIM
siliconpr0n.org_map_unknown_excite-visa_single_unknown_excite-visa_mcmaster_mz_mit20x.thumb.jpg Link Unknown CC Excite VISA CC
siliconpr0n.org_map_unknown_sim-orange-200453_single_unknown_sim-orange-200453_mcmaster_mit20x.thumb.jpg Link Unknown SIM Orange SIM
siliconpr0n.org_map_unknown_sim-t032-020699_single_unknown_sim-t032-020699_mcmaster_mz_mit20x.thumb.jpg Link Unknown SIM “T032” SIM
2023-07-23-C1: chatr
siliconpr0n.org_map_unknown_mastercard-citigold-27011a_single_unknown_mastercard-citigold-27011a_mcmaster_mz_mit20x_crop.thumb.jpg Link Unknown CC Citigold Mastercard CC
siliconpr0n.org_map_unknown_sim-verizon-4g_single_unknown_sim-verizon-4g_mcmaster_mz_mit20x.thumb.jpg Link Unknown SIM Verizon 4G SIM
siliconpr0n.org_map_winbond_w74m12jwpiq_single_winbond_w74m12jwpiq_mcmaster_mz_mit5x.thumb.jpg Link Winbond W74M12JWPIQ Memory “Winbond W74M product family comes with standard HMAC-SHA-256 crypto accelerator and 4 separate Monotonic Flash Counters that are HMAC-signed by individual secret keys“

Where:

  • CC: Credit Card
  • SE: Secure Element. A device that stores and internally uses cryptographic keys
  • SIM: Subscriber Identity Module, the thing that traditionally gave a cell phone its number
  • TPM: TCG conforming module intended to provide conforming cryptographic services to computers. Ex: Windows disk encryption key

More info:

  1. Tarnovsky print cartridge notes: https://www.youtube.com/watch?v=-vnik_iUuUs

TODO:

  1. Several lots of SIM cards still in the pipeline
  2. Nuvoton TPM
  3. DS5003FPM-16+
  4. MAX32520-KIT#
  5. STM32L562CET6
    1. Trust zone only, might not be that interesting
  6. Joe Grand crypto wallet (ST something IIRC)
    1. PS4: Model: NXP A710x series, possibly semi-customized (Label says 7105 - A7105 does not exist)

Security mesh

Image Link IC
Vendor
IC
Model
Die marking Application Found in Mesh Notes
siliconpr0n.org_map_pccw_8985219_single_pccw_8985219_mcmaster_mz_mit20x.thumb.jpg Link SIM PCCW SIM
siliconpr0n.org_map_st_sf1003c_single_st_sf1003c_mcmaster_mz_mit20x.thumb.jpg Link ST sf1003c SE “The STSAFE-A110 is a highly secure solution that acts as a secure element providing authentication and secure data management services to a local or remote host. It consists of a full turnkey solution with a secure operating system running on the latest generation of secure microcontrollers.”
siliconpr0n.org_map_atmel_atecc508a_single_atmel_atecc508a_h1kari_mz_x2500.thumb.jpg Link Atmel ATECC508A SE
siliconpr0n.org_map_atmel_atecc608a_single_atmel_atecc608a_h1kari_mz_1500x.thumb.jpg Link Atmel ATECC608A SE
att_sim_bf_neo10x_4k.jpg Link SIM AT&T SIM Serpintine
siliconpr0n.org_map_google_fi-pc-nv-00029_single_google_fi-pc-nv-00029_mcmaster_mz_mit20x.thumb.jpg Link SIM Google FI SIM
siliconpr0n.org_map_unknown_o2-4gpp2_single_unknown_o2-4gpp2_mcmaster_mz_mit20x.thumb.jpg Link SIM O2 SIM
siliconpr0n.org_map_unknown_china-mobile-gpre4_single_unknown_china-mobile-gpre4_mcmaster_mz_mit20x.thumb.jpg Link SIM China Mobile GPRE4 SIM
siliconpr0n.org_map_unknown_excite-visa_single_unknown_excite-visa_mcmaster_mz_mit20x.thumb.jpg Link CC Excite VISA CC
siliconpr0n.org_map_atmel_sc144144ct_single_atmel_sc144144ct_mcmaster_mz_mit20x.thumb.jpg Link Atmel sc144144ct MCU
