collection mcmaster, vendor ti, year unknown, foundry unknown, tech unknown

From Sinclair Scientific calculator

Package

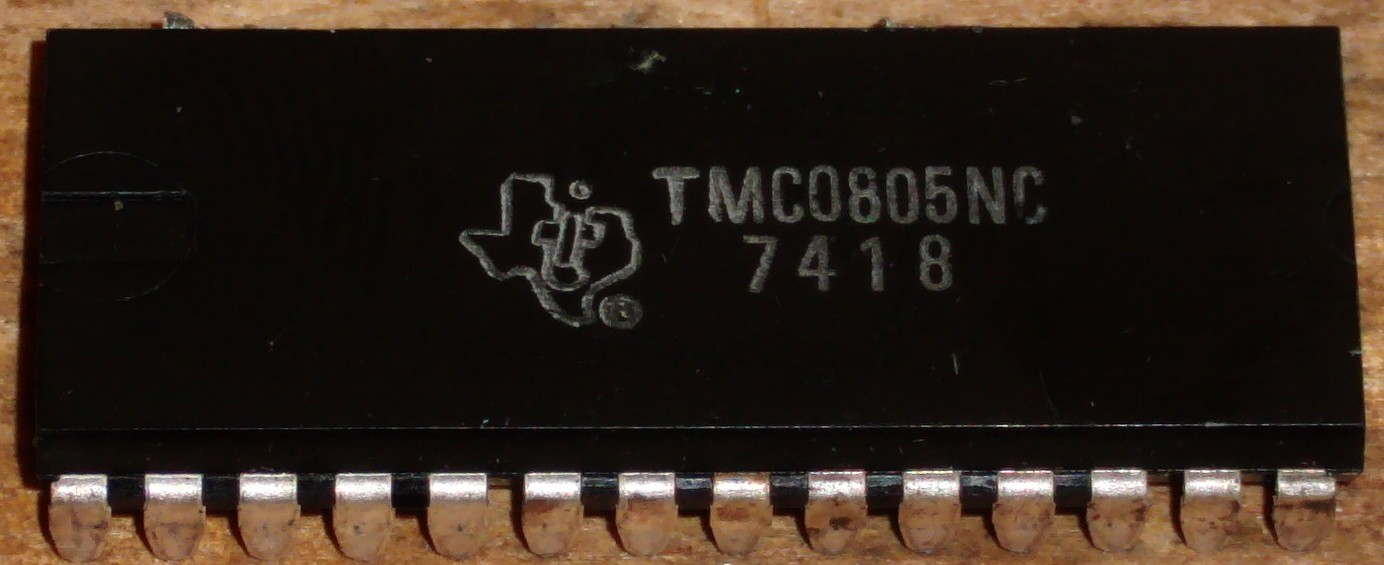

Label (front):

(TI logo)
TMC0805NC
7418

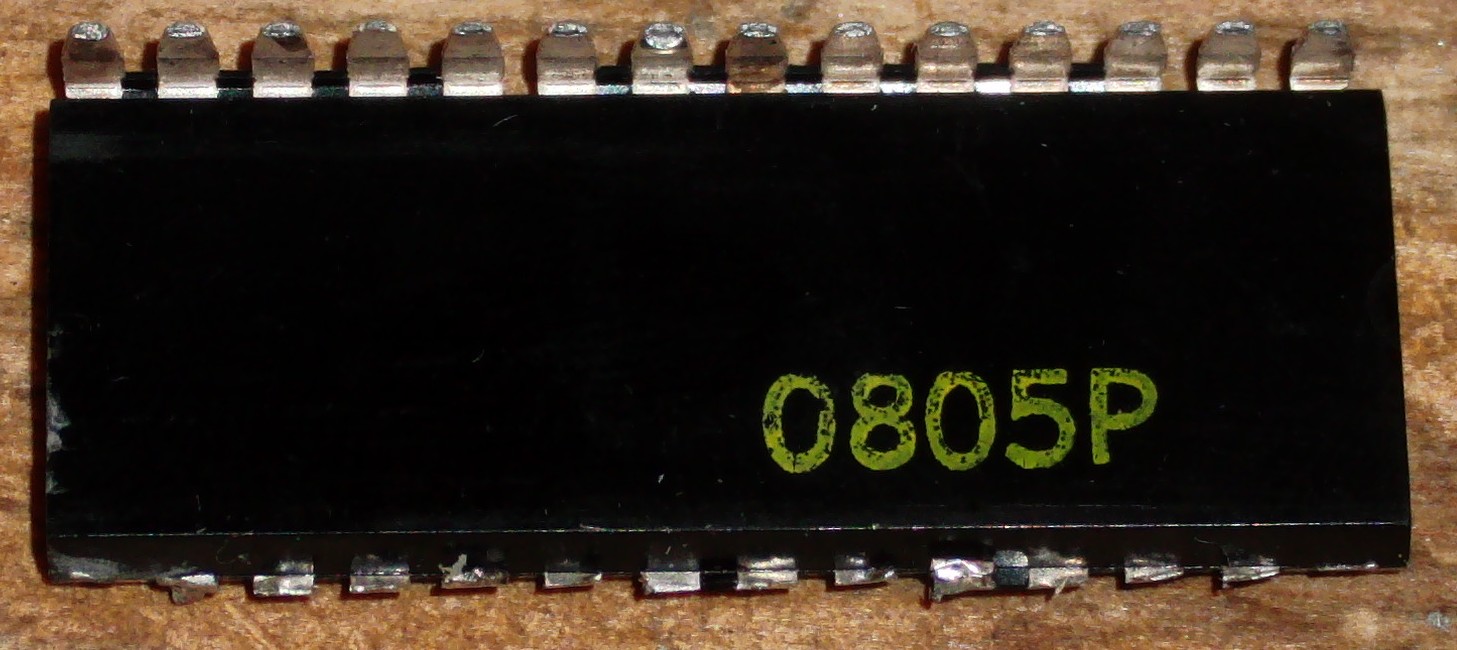

Label (back):

0805P

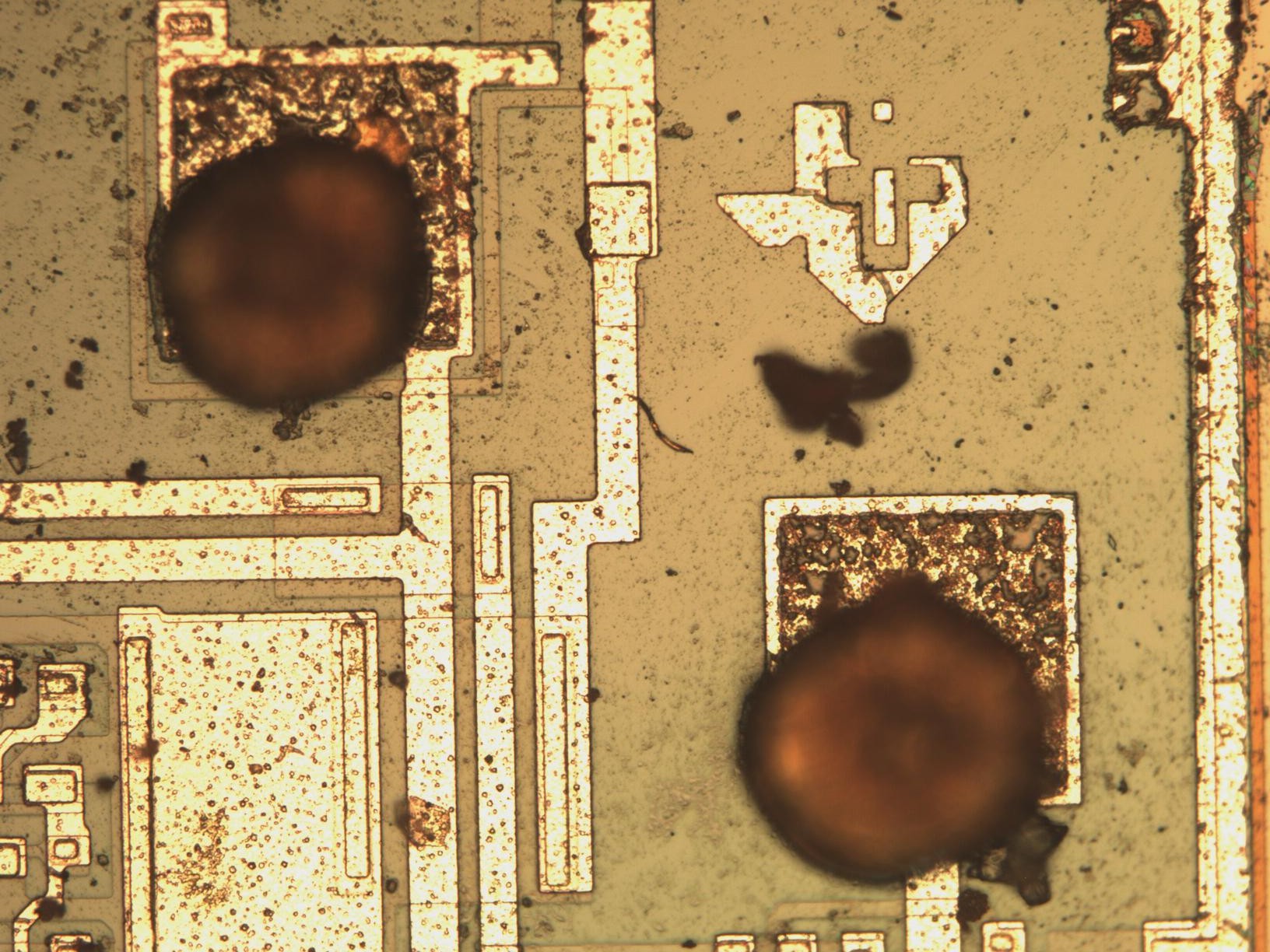

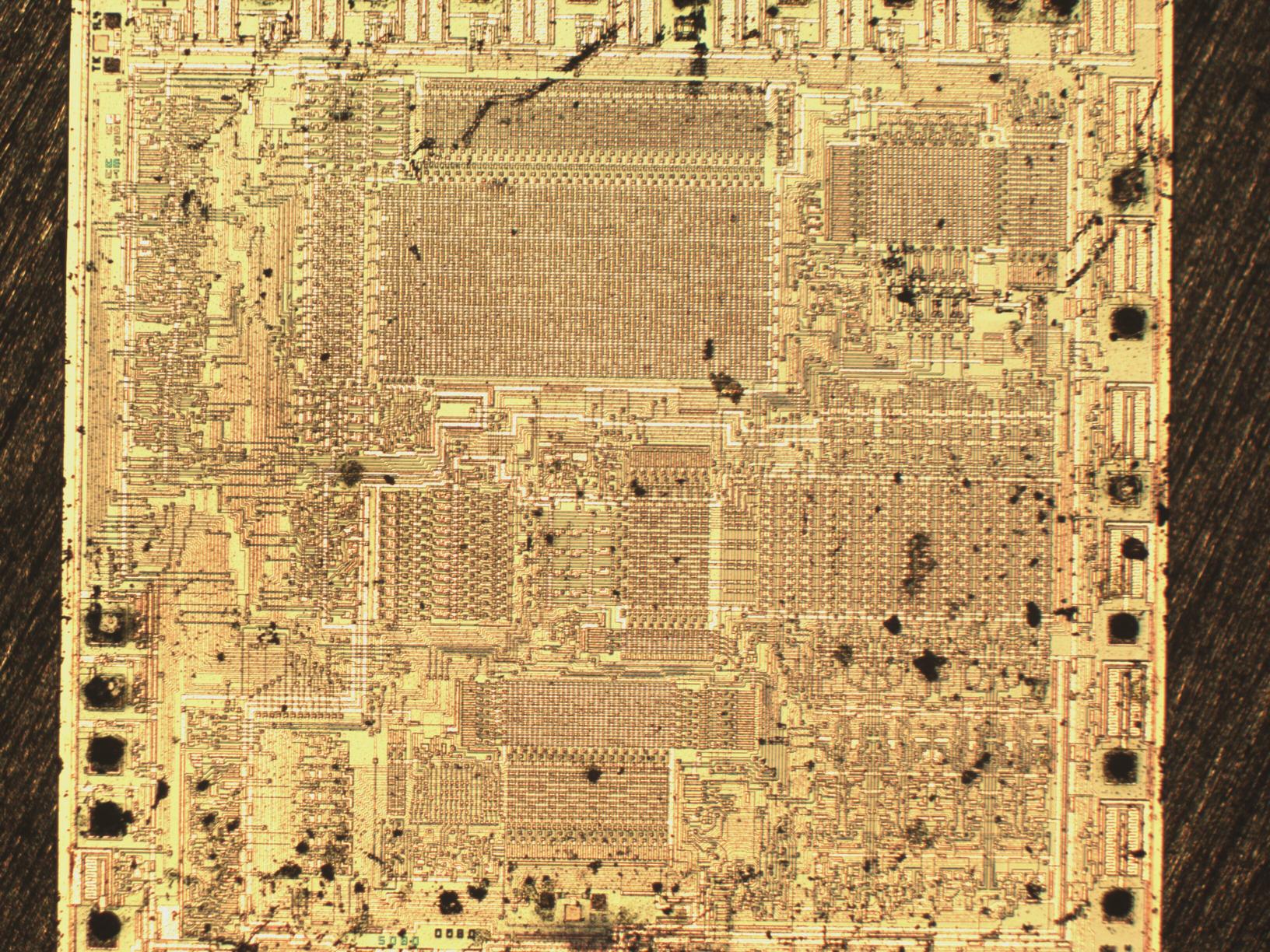

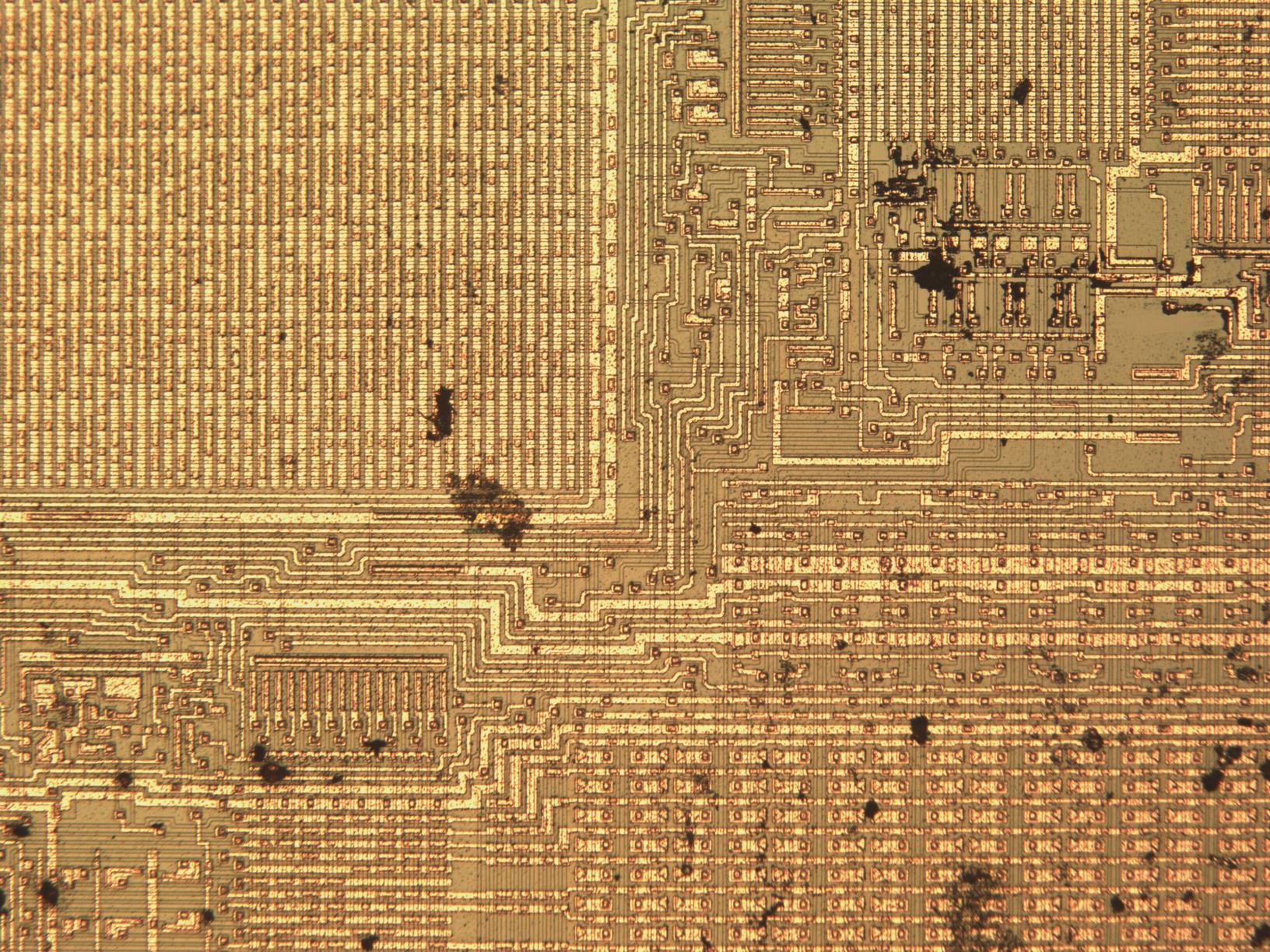

Die

Map

Top metal @ 20x: http://siliconpr0n.org/map/ti/tmc0805nc/mcmaster_mz_mit20x/

Single (67M, 14336×14237): http://siliconpr0n.org/map/ti/tmc0805nc/single/ti_tmc0805nc_mcmaster_mz_mit20x.jpg
