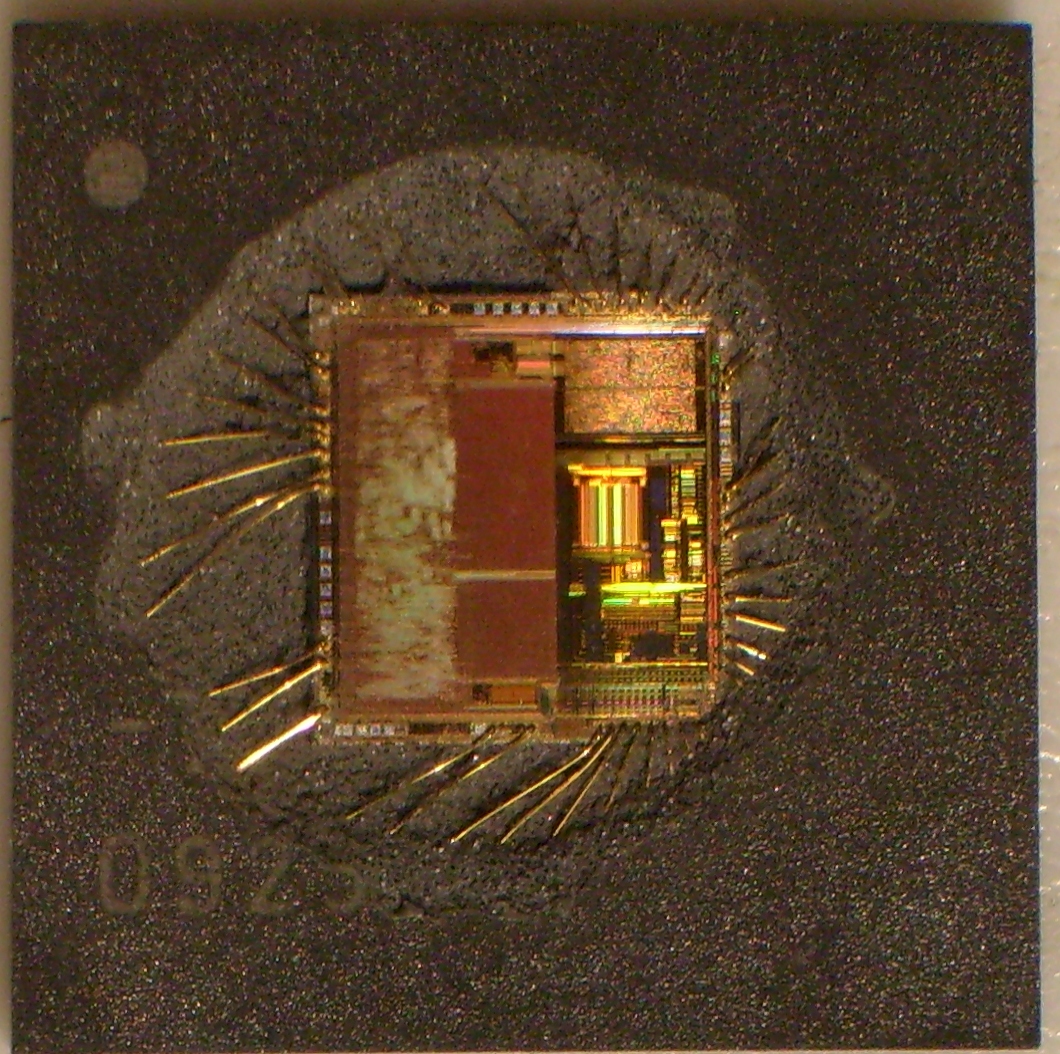

44-pin QFN, decapped live.

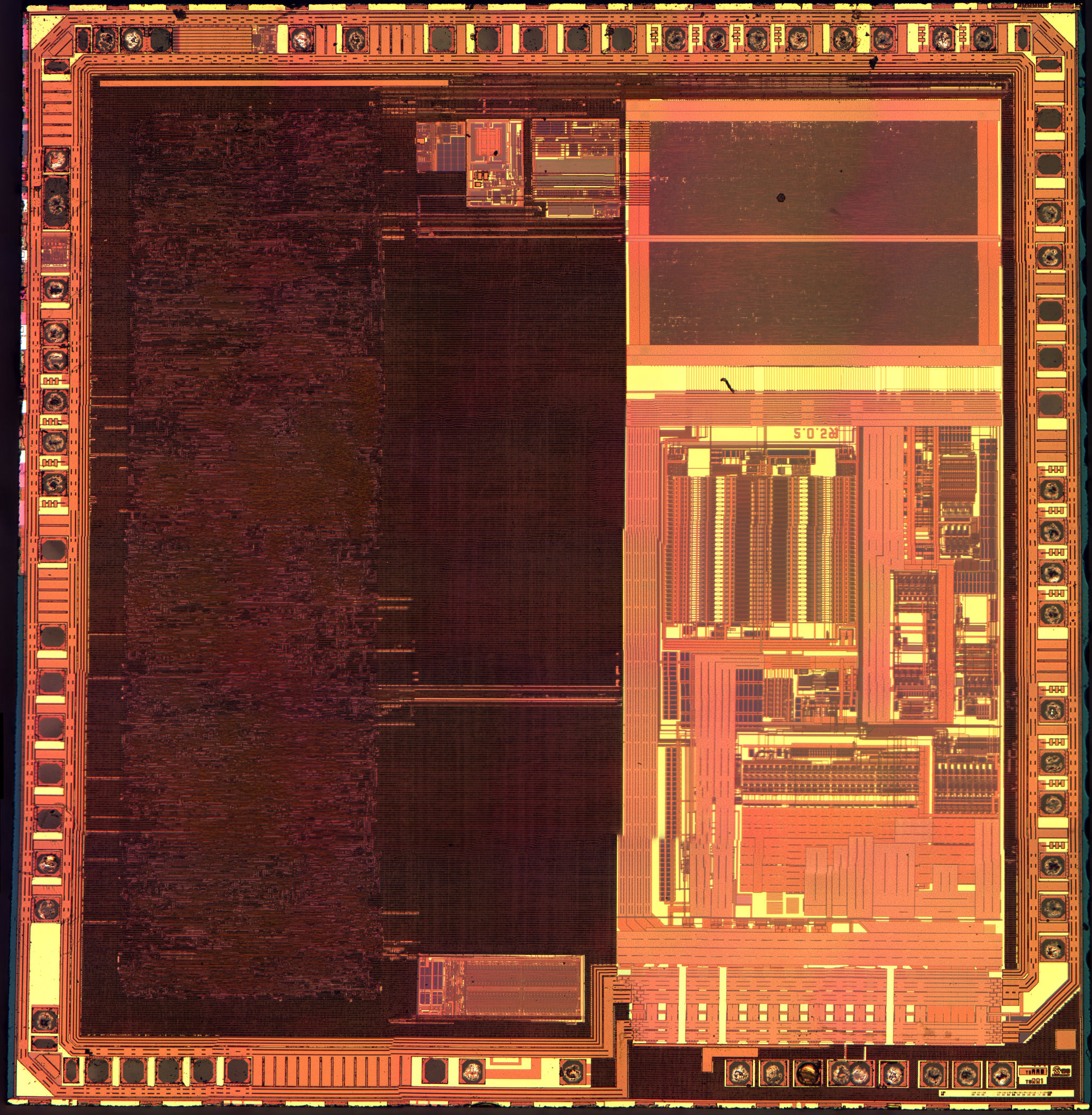

Rough stitch of old images with Am10x objective. Need to re-shoot at higher resolution.

Map

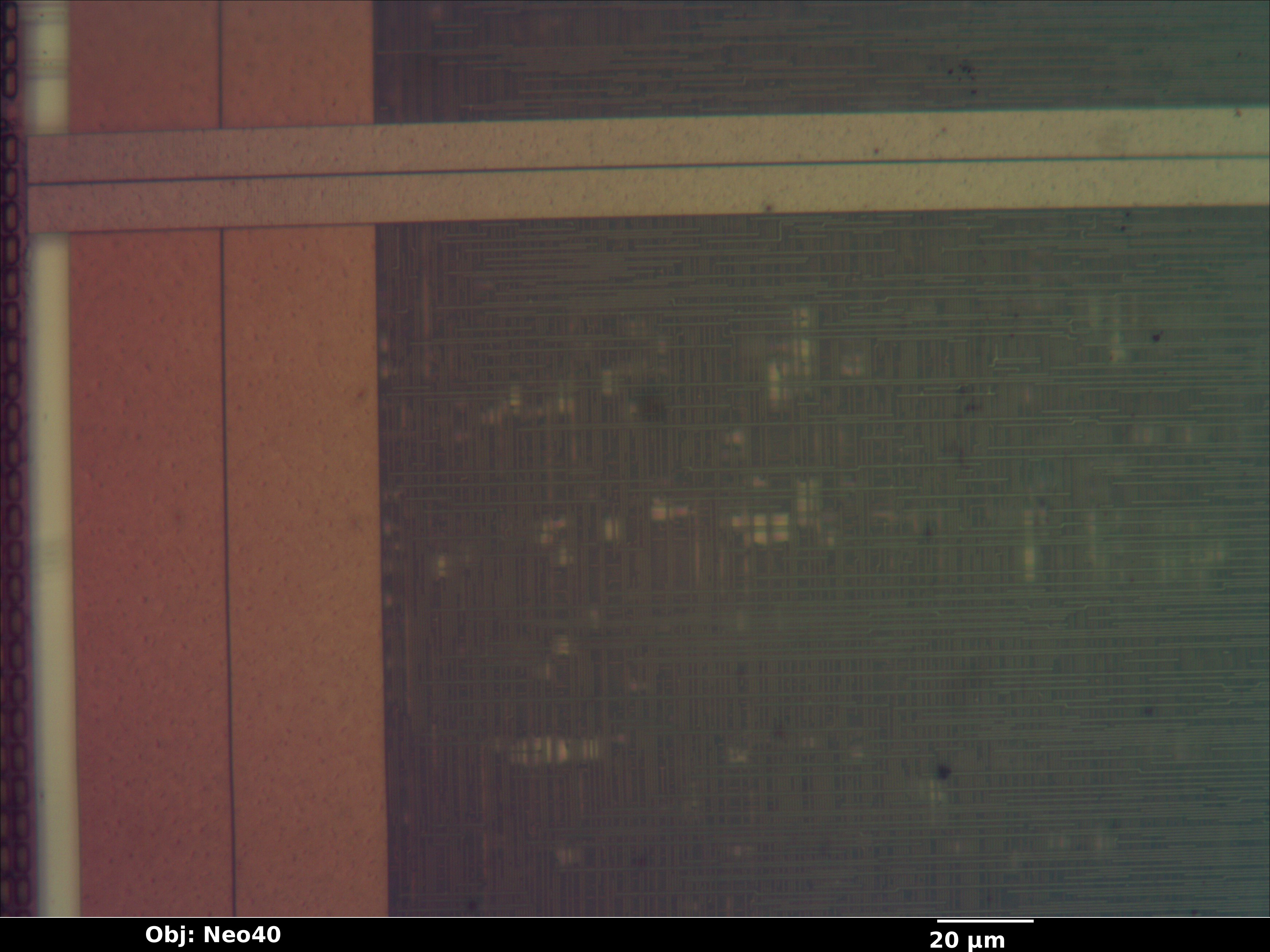

Close-up of dense logic area at upper right:

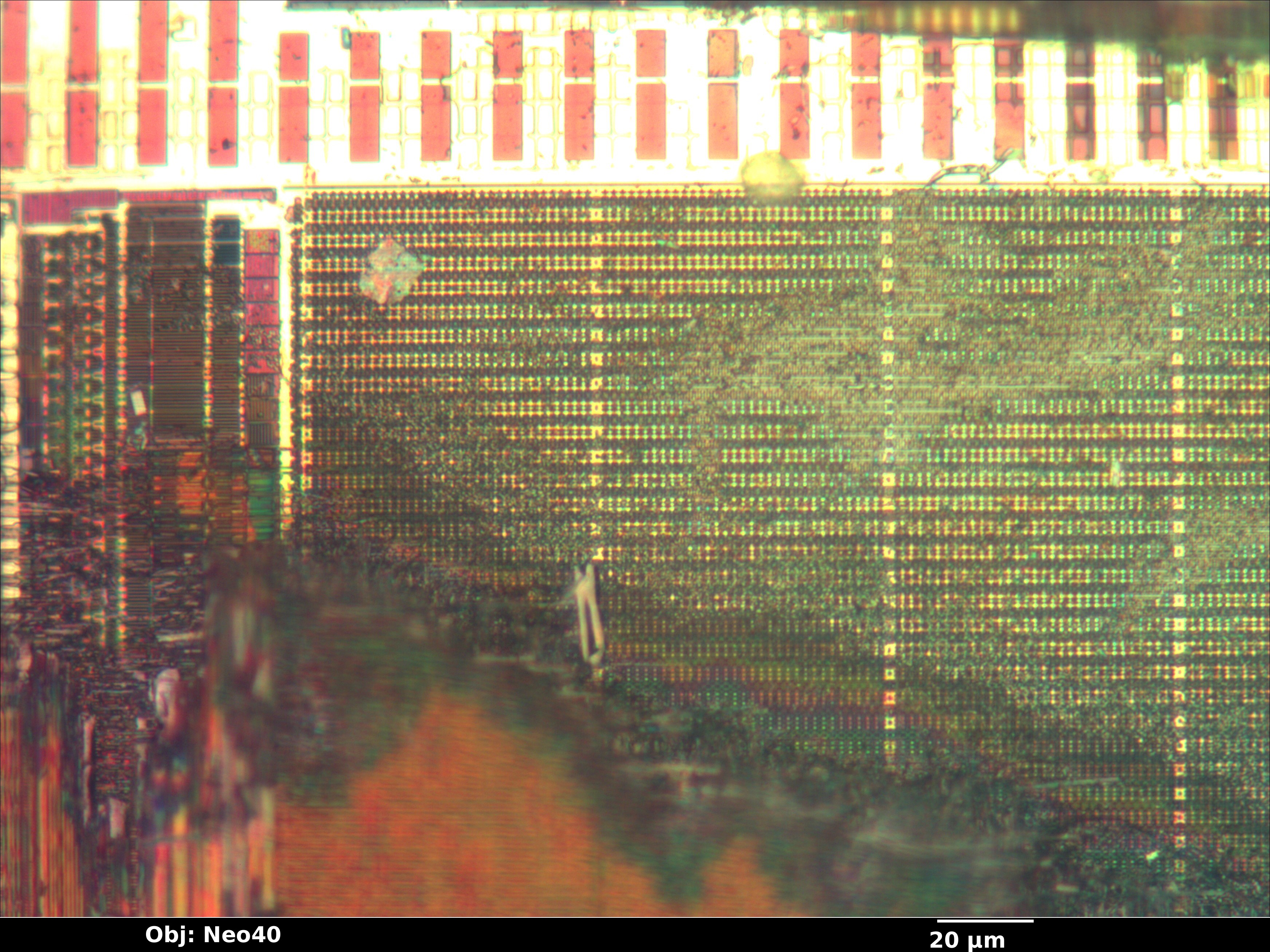

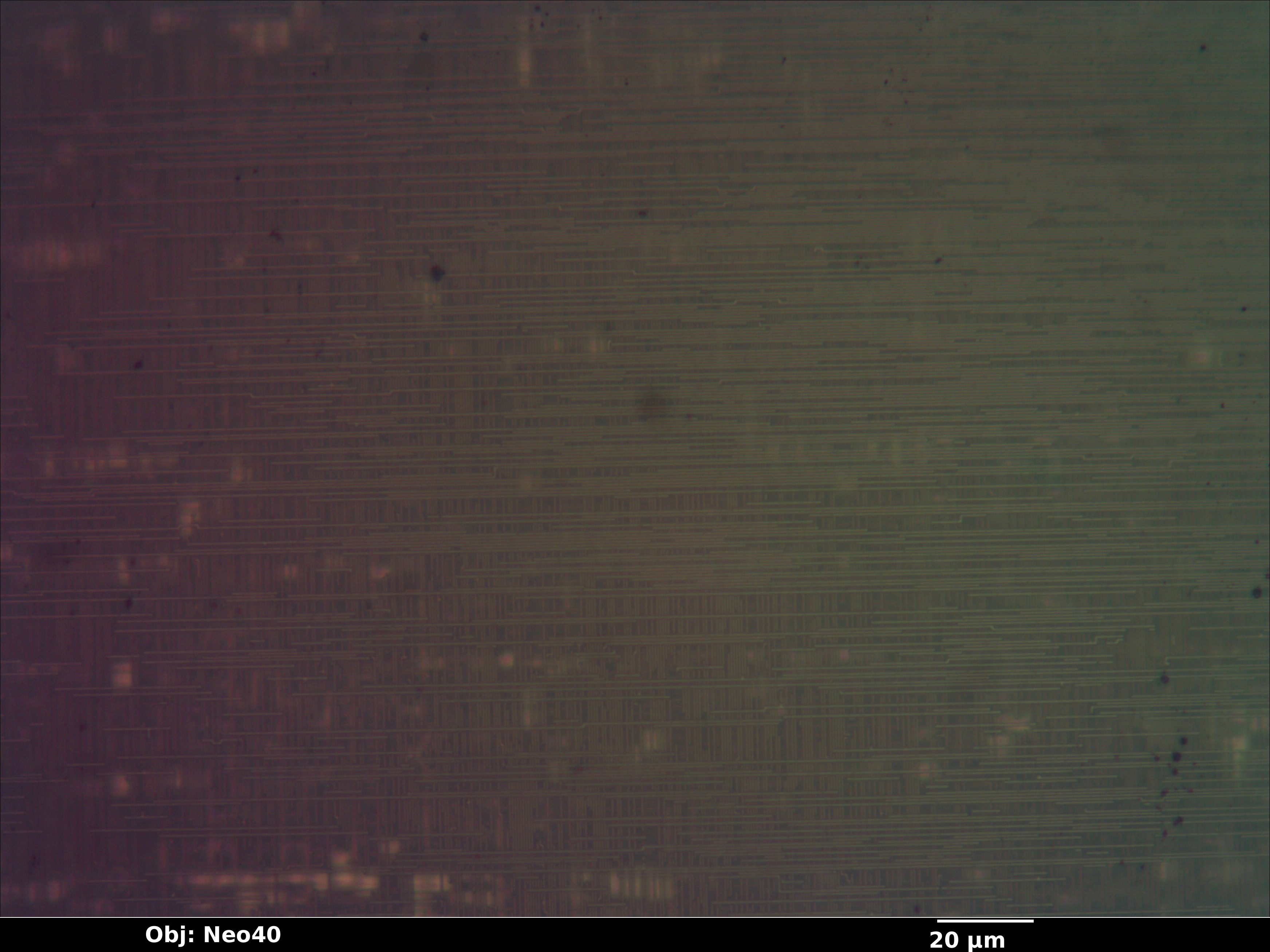

Partial HF delayer of SRAM. Confirmed to be same process as PIC32 based on SRAM cell pitch.

mz_mit20x

• Single (14712×14989, 31.447MiB)
