FEATURES:
MODEL DTM-299 (Standard Version)
-Displays ALL dataway signal
-Both Track and Latch mode
-Manual LAM generation
-Read of previous dataway cycle
-Data and Status F, A, etc.
-Stretched display of B, Sl , S2, L
MODEL DTM-399 (Enhanced Version)
-Power supply failure detection
-Ambient temperature monitor
DESCRIPTION:
This series of Dataway Test Modules is designed for use as a low-cost diagnostic, test and display aid for troubleshooting CAMAC, from both a hardware and sottware viewpoint. Status and dataway conditions can be seen at a glance, also computer controlled systems can run self diagnostics through to the dataway level. (Confidence factor for system programmers)!

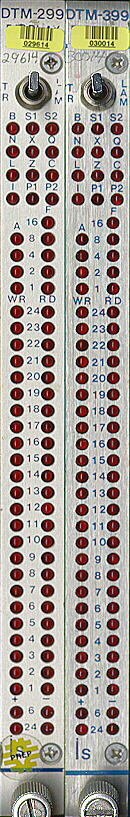

Front panel LED indicators display the status of all dataway signals in either Latch or Track (continuous) mode. Write data, control signals, and status for the previous dataway operations may be read back for system self diagnosis. A front panel manual LAM switch is also available to test the crate and software LAM handling capability.
In addition to these features the MODEL DTM-399 includes monitoring of ambient temperature and the four standard CAMAC power supplies. Should a preset limit be exceeded by high ambient temperature, a voltage failure, current spike or power supply oscillation a LAM will be generated. The detection and logic circuitry is powered by voltage steering and any supply may fail without affecting the modules operation.
COMMANDS:
DTM-299
NA[O]F[O] Read data Q,X = 1
Reads previously Latched write data onto Dataway
read linds. Rl-R24
NA[O]F[l] Read status Q,X = 1
Reads previously Latched status, function code,
subaddress, etc. onto Dataway read lines, plus
reads position status ot front panel switch.
NA[O]F[8] Test LAM X = 1
Test LAM status, Q=1 if set
NA[O]F[10] Reset LAM Q,X=l
Resets LAM request.
DTM-399 [ADDITIONAL COMMANDS]
NA[O]F[l] Read Status Q,X = 1
NA[O]F[24] Disable LAM Q,X = 1 NA[O]F[26] Enable LAM Q,X= 1
SPECIFICATIONS:
SIGNALS DISPLAYED
Latched at Sl
Read R(24) Write W(24)
Function F(5) Subaddress A(4)
Stn. No. N 0 Response Q
Pl Bus Pi X Response X
P2 Bus P2
Latches at S2
Initialize z Clear c
Stretched [200 MS]
Strobe 1 s1 Strobe 2 S2
Busy B LAM L
DTM-399 [ONLY]
Temperature set point range: 25-600C
Voltage set point range-.
+6 = +3 to +6v +24 = +21 to +24v
-6 = -3 to -6v -24 = -21 to -24v
Continuous [Track]
+/- 6 Volts 6(2) +/-24 Volts 24(2)
inhibit l (1)
Power Requirements
+6V - 1 8 A Max
- 6V. +/-24V - 16 ma.
Operational Mades
LATCH - Dataway signals are latched with the
appropriate strobe
TRACK - Real Time continuous display of data-
way signals
Mechanical
Single width module
Minimum voltage excursion time for detection (voltage spike) = 1 usec
Reference stability = +/- .1 % 24 hours.
