Microchip PIC16C57C
DIE

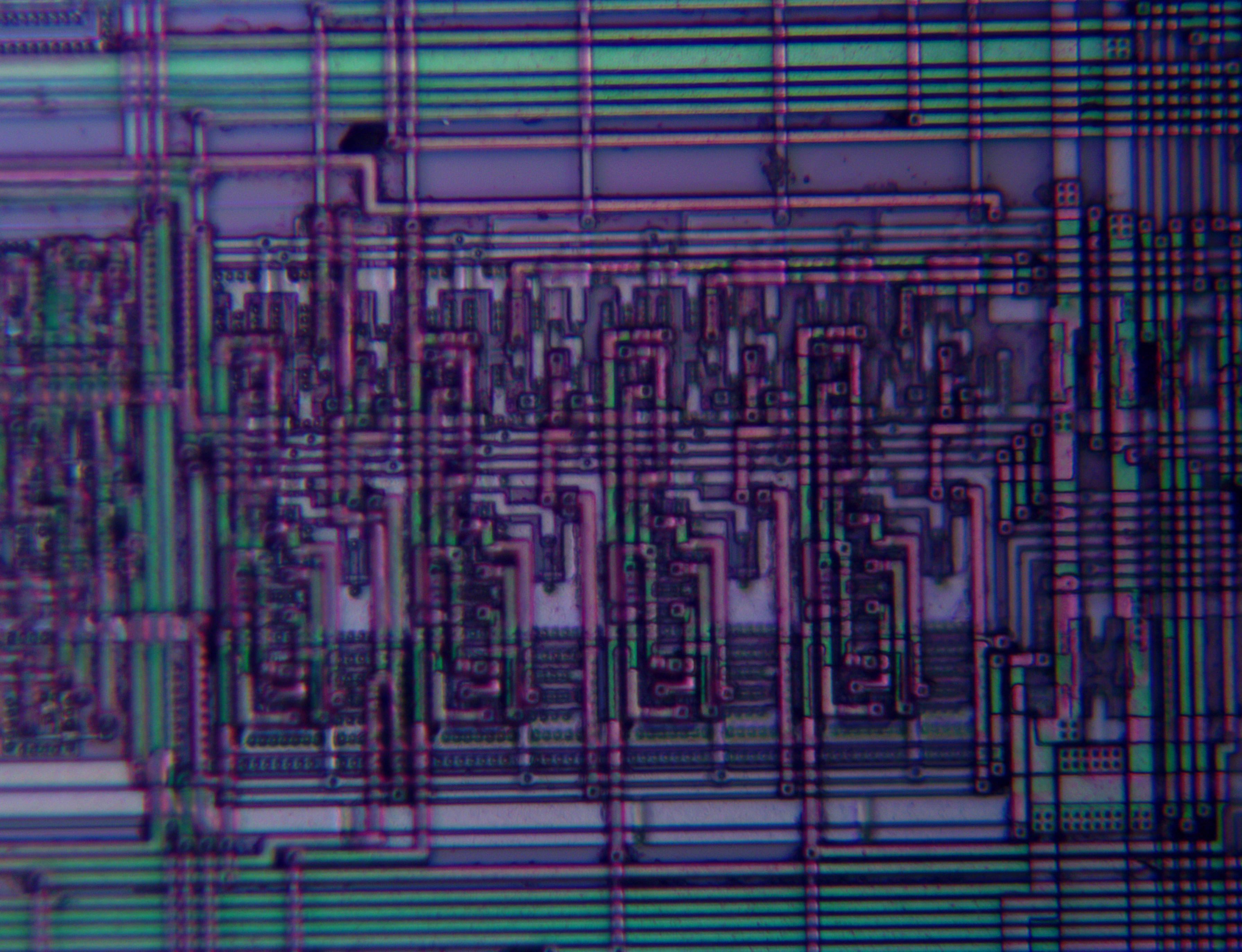

Top Metal @ 5x:
Fuse details:
Fuses are not protected against UV attack on this model. Following the datasheet (p44 & 45) there should be more fuses.
Top metal @ 10x: http://siliconpr0n.org/map/microchip/pic16c57c/nd10x_mz/
https://burninsheep.wordpress.com/2013/05/21/pic16c57c-unlocking-and-code-dumping/
