collection mcmaster, vendor ti, year unknown, foundry unknown, tech unknown

Datasheet: unknown

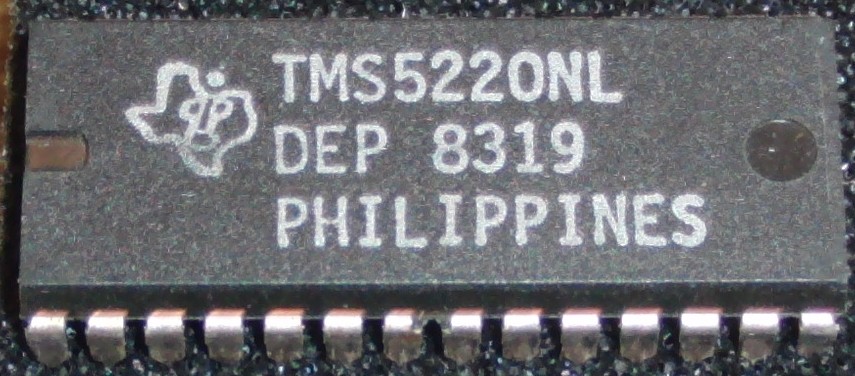

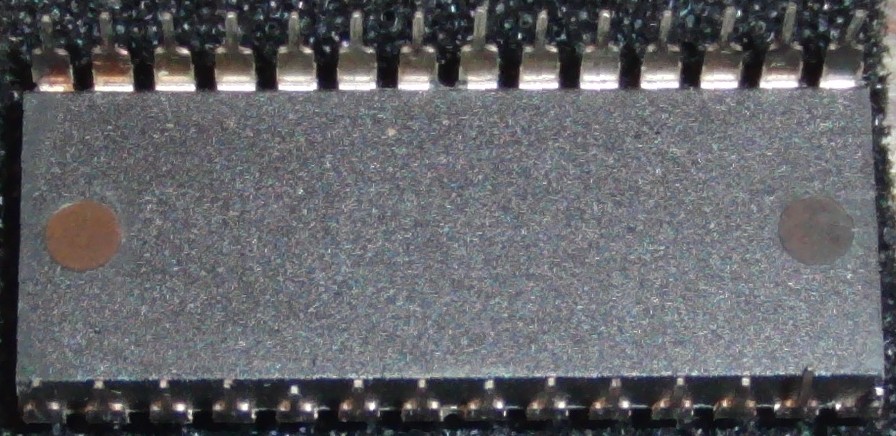

Package

Label (top):

TMS5220NL
DEP 8319
PHILIPPINES

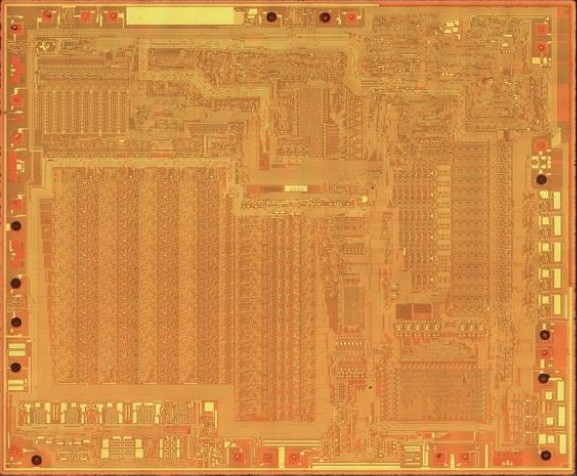

Die

Size: X x Y um

Text:

(C) 11 - 78

Map

Top metal: http://siliconpr0n.org/map/ti/tms5220nl/mcmaster_mz_mit20x/

Single (81 MB, 18074×14916): http://siliconpr0n.org/map/ti/tms5220nl/single/ti_tms5220nl_mcmaster_mz_mit20x.jpg
