collection mcmaster, vendor sprague, type logic, type logic/discrete, type logic/discrete/74xx, year unknown, foundry unknown, tech unknown

Package

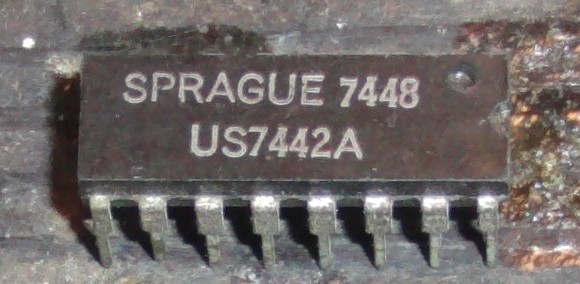

Top:

SPRAGUE 7448
US7442A

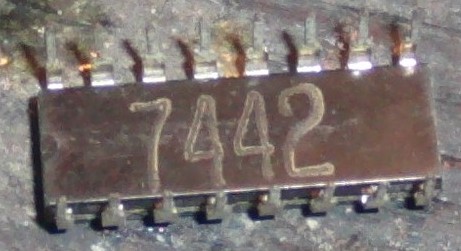

Bottom (some chips, most were blank):

Die

Believe there were 2 large and 1 small. Also something funny happened where it appears they got stripped to active area during decapsulation. It may have been due to overheating a PTFE beaker as a result of the carrier island “burn”.

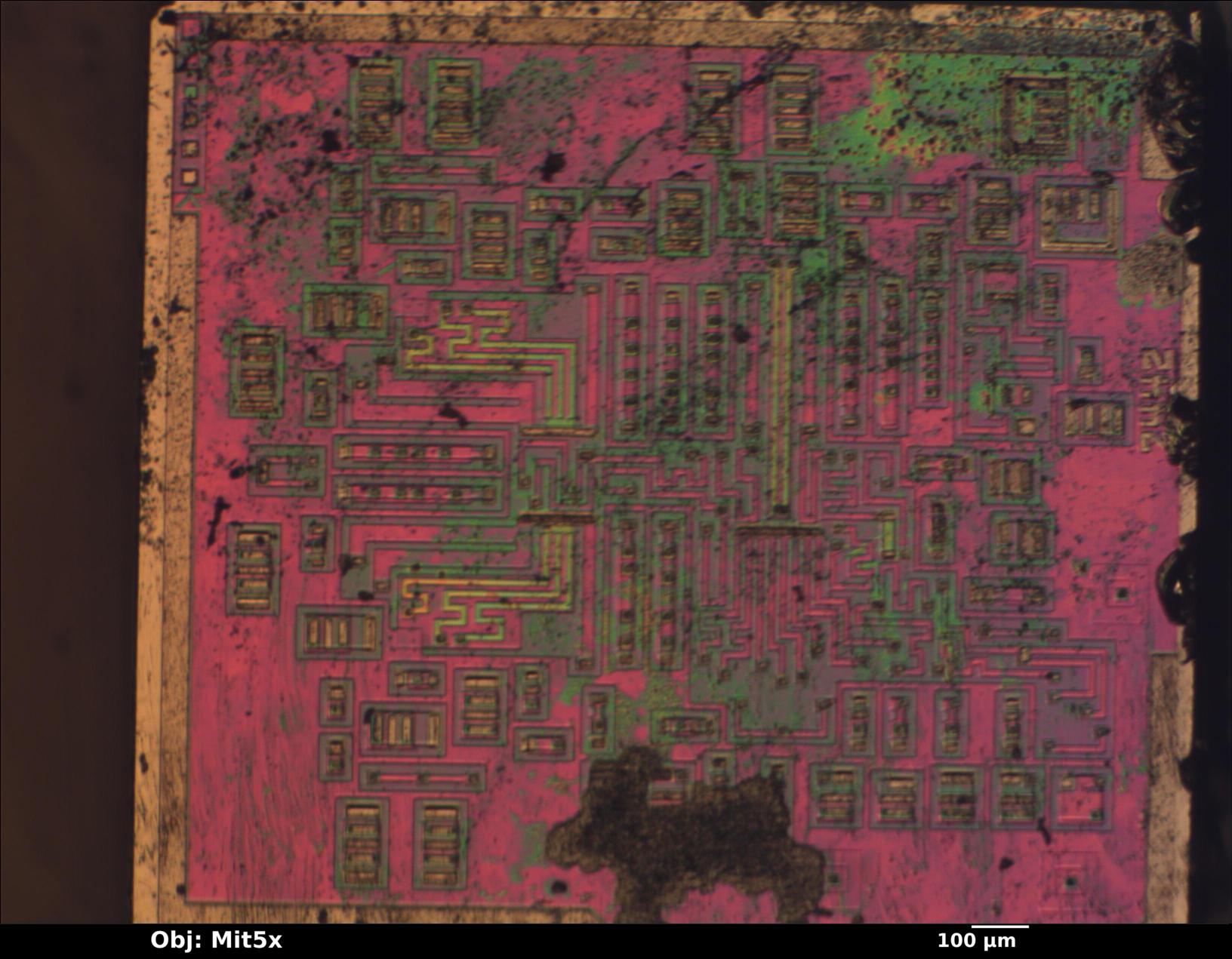

Small

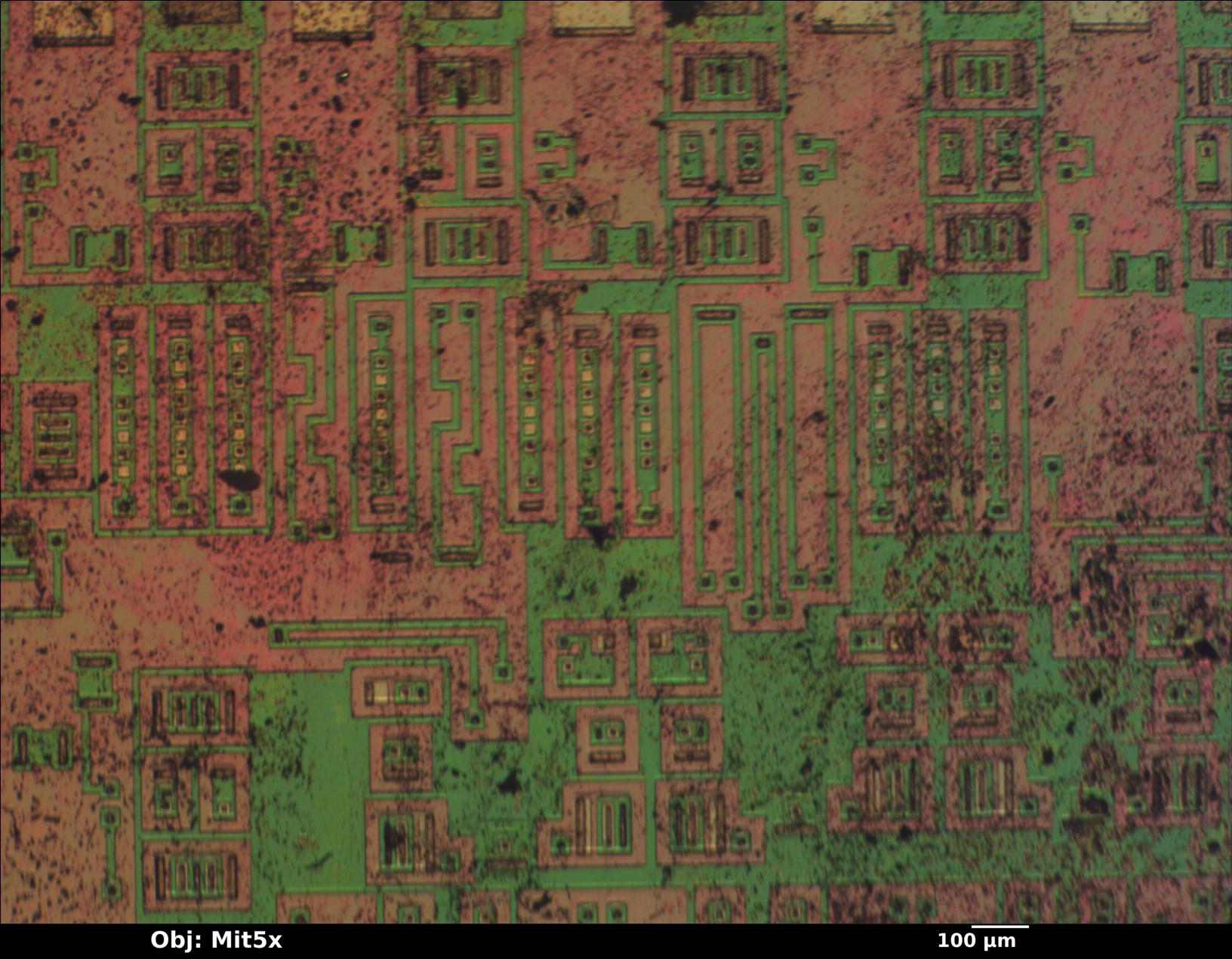

Big
