Package

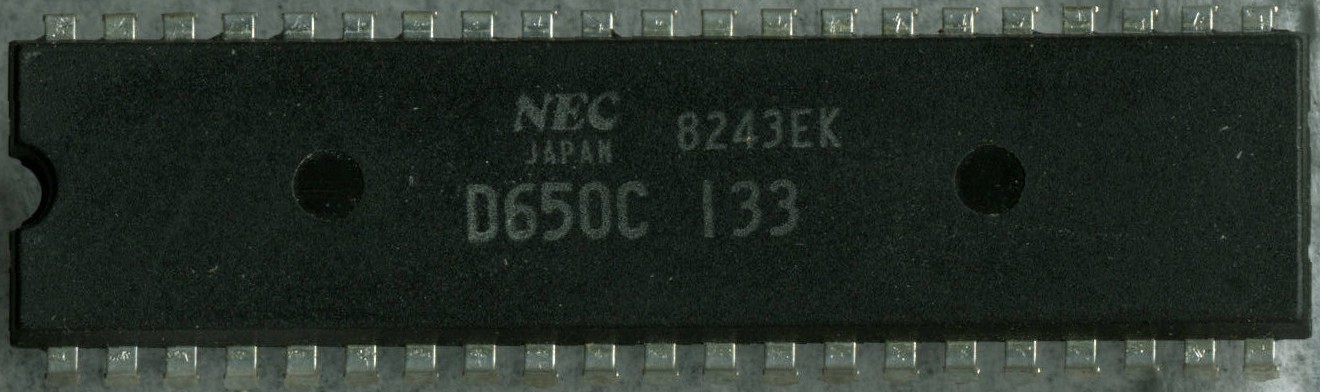

Top:

NEC JAPAN
8243EK
D650C 133

Die

In the middle of the die, traces spell out “LEMC”. Designer initials?

Label:

NEC D650 133

Map

Map @ Mit5x

Map @ Mit20x (stacked)

  • Single (19193×18689, 106 MB)
