infosecdj:unknown:kr1810vm86

An exact clone of the intel 8086. The only changes to mask work were to remove intel logo and branding, add the die ID, and mask IDs and align marks. The marks seem to be the same used at the Rodon plant.

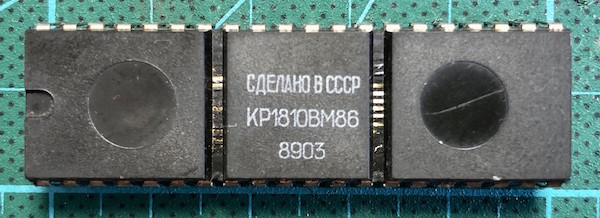

Package

СДЕЛАНО В СССР
КР1810ВМ86
8903

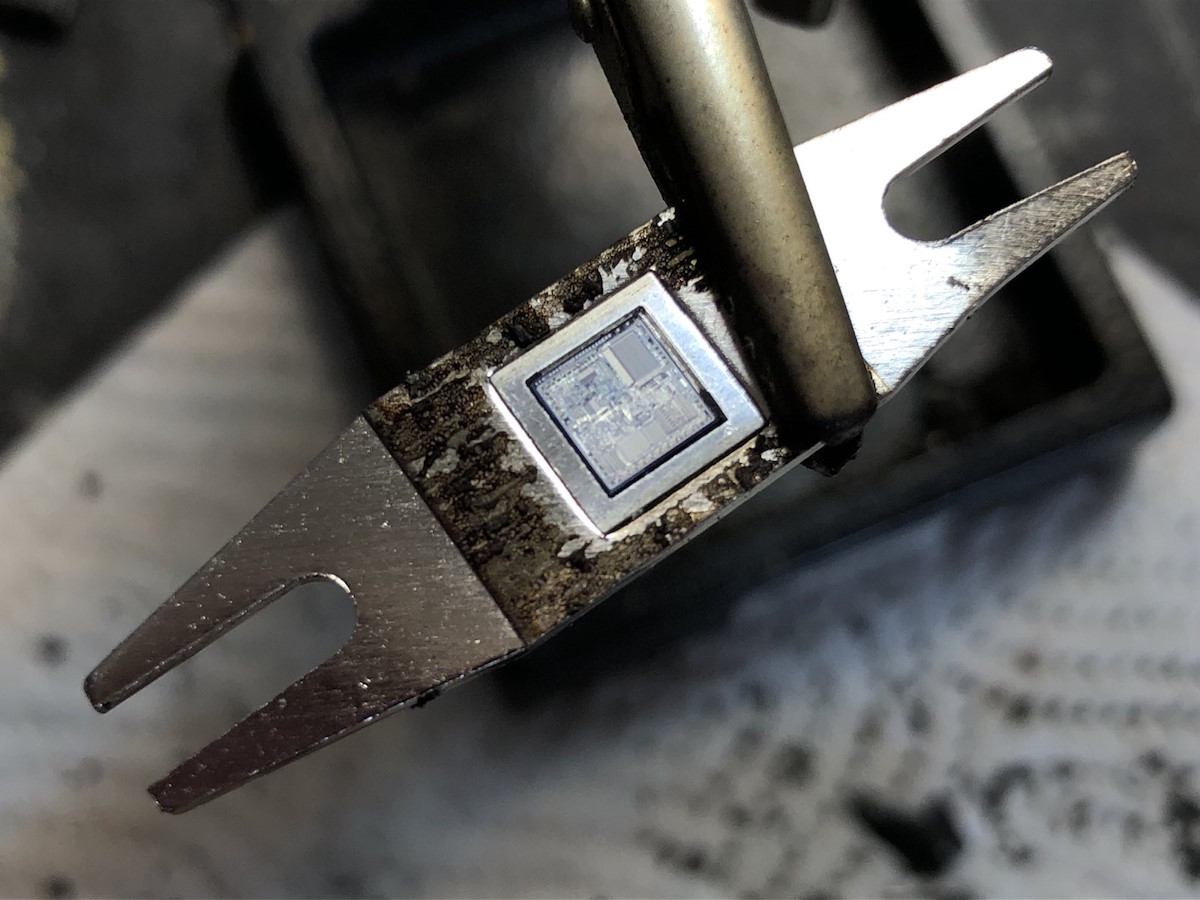

Die

1810ВМ86

siliconprawn.org_map_unknown_kr1810vm86_single_unknown_kr1810vm86_infosecdj_mz_nikpa20x.thumb.jpg

Top metal imaged using Nikon Plan Apo 20x/0.75

  • Single (36215×34677, 338.301MiB)
