infosecdj:tesla:mda3505
, , , ,

Some funky bipolar video processing circuit for TVs.

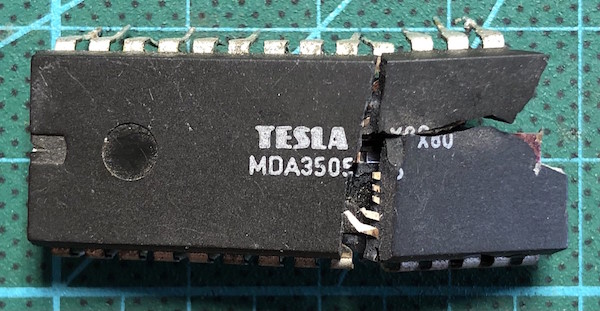

Package

(Logo) X80
MDA3505

Die

3505
NVI

siliconprawn.org_map_tesla_mda3505_single_tesla_mda3505_infosecdj_mz_nikpa20x.thumb.jpg

Top metal imaged under Nikon Plan Apo 20x/0.75

  • Single (26952×21223, 102.566MiB)
