infosecdj:cypress:cy8c21123-24sxi
A member of the PSoC MCU family.
Reportedly a 2-metal-layer 350nm process from FAB4.

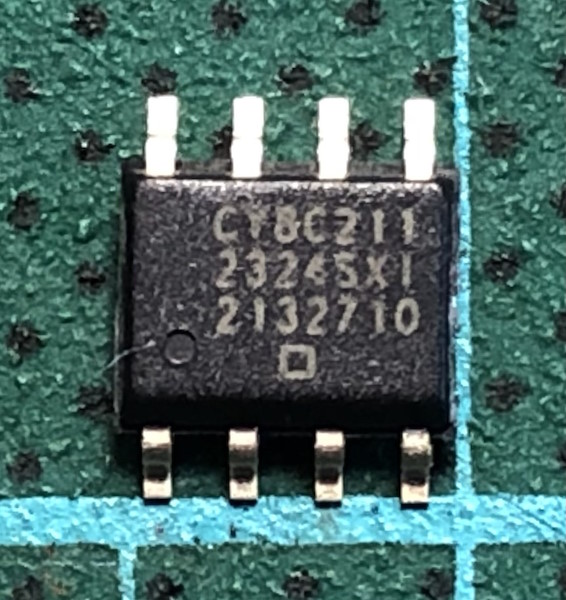

Package
CY8C211 2324SXI 2132710
Die
(M) Cypress (M) CMS (Logo) 8C21000A (C) 2004
Top metal imaged using Nikon Plan Apo 40x/1.0 oil
- Single (22976×27741, 151.539MiB)
