collection dcstraney, vendor agilent, type mcm, type analog converter, year unknown, foundry unknown

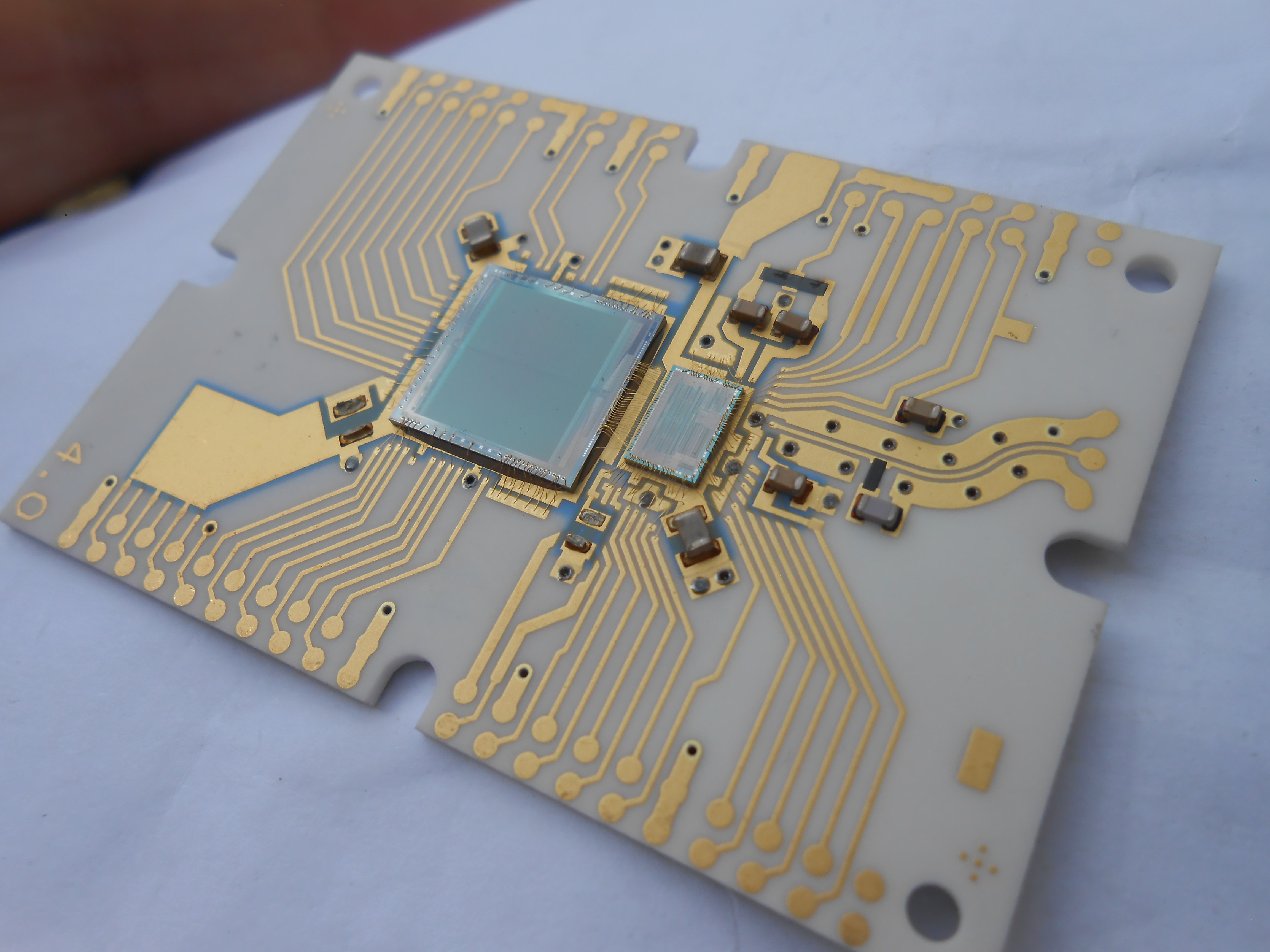

Package

Looks like an ADC & FIFO memory to store samples? Possibly from oscilloscope or waveform digitizer?

Die

Larger die looks like FIFO or sample memory; middle section is omitted from images.

mz_die1_btm-edge

Single (12181×1962, 12.4713MiB)

mz_die1_top-edge

Single (12222×1949, 10.8902MiB)

Smaller die looks like ADC

mz_die2_overview

Single (6512×4435, 13.6009MiB)

Single (2705×2702, 2.58696MiB)
