Candle-flicker LED (see http://cpldcpu.wordpress.com/2013/12/08/hacking-a-candleflicker-led/)
Package
TODO

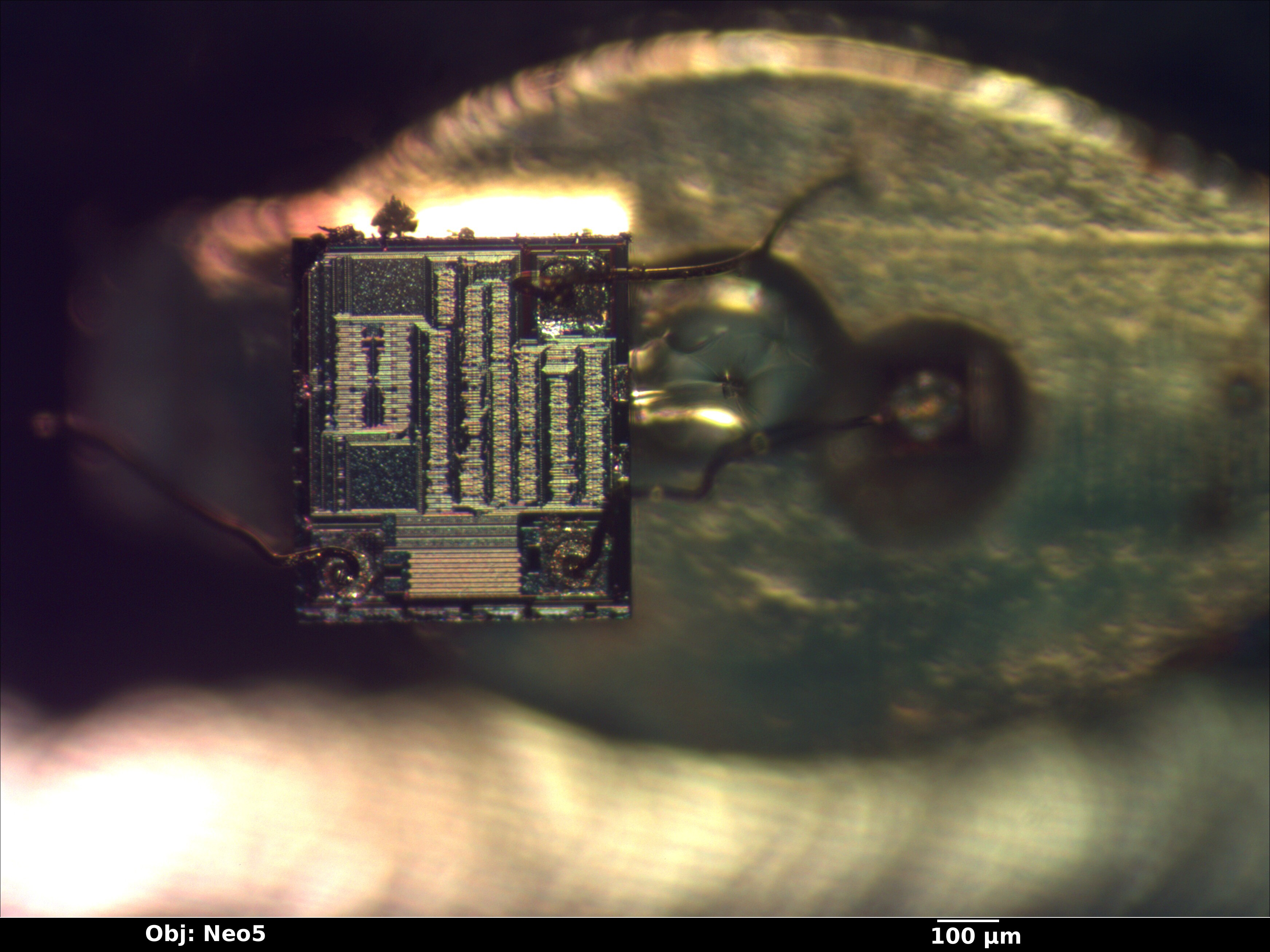

Bonding
Pinout:
- Bottom left = Power
- Bottom right = LED power
- Top right = Ground
LED die
No photos at this time

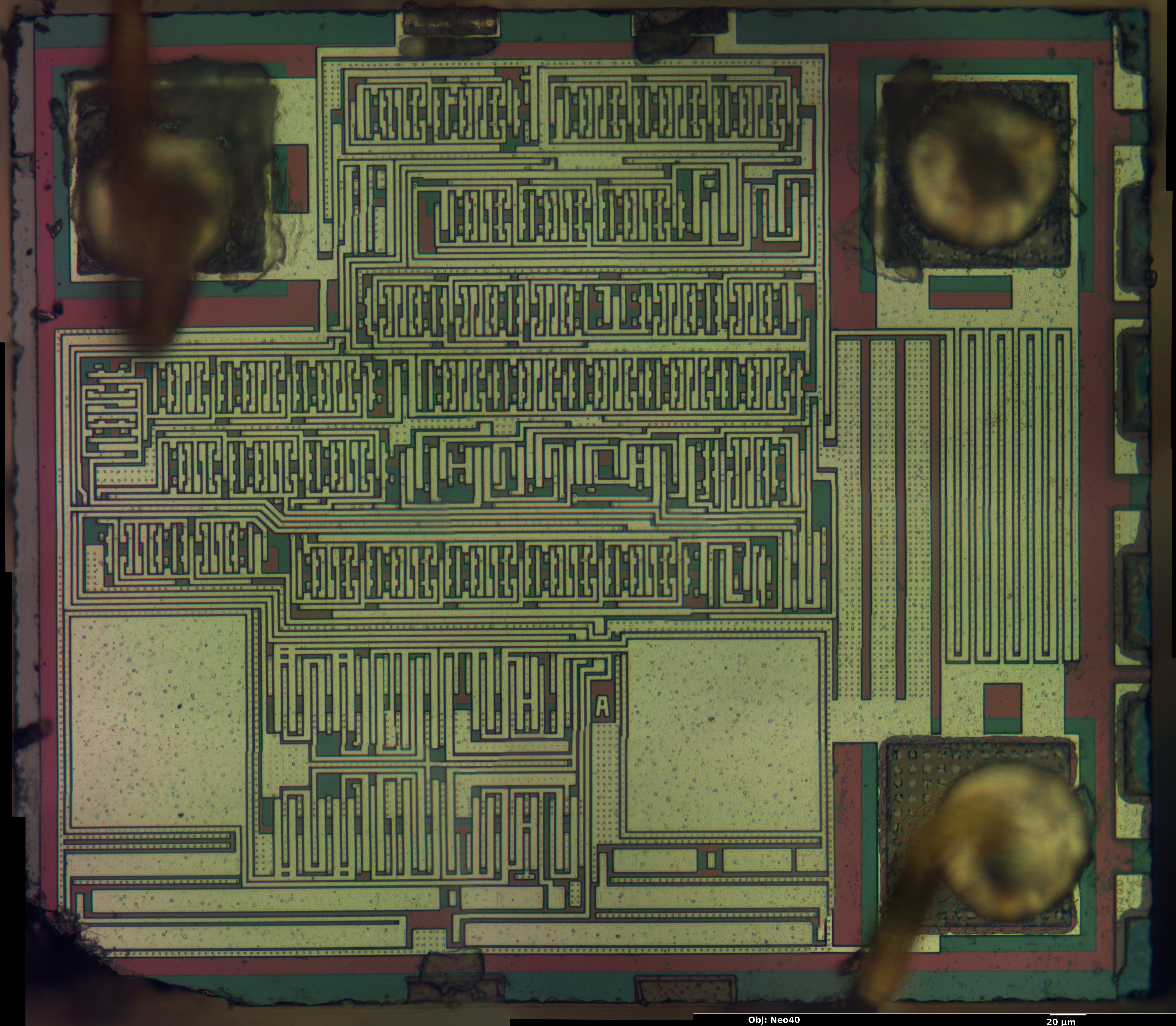

Controller die
Die size: 545 x 620 μm (0.34 mm2)
- Top left = ground
- Top right = control
- Bottom right = power

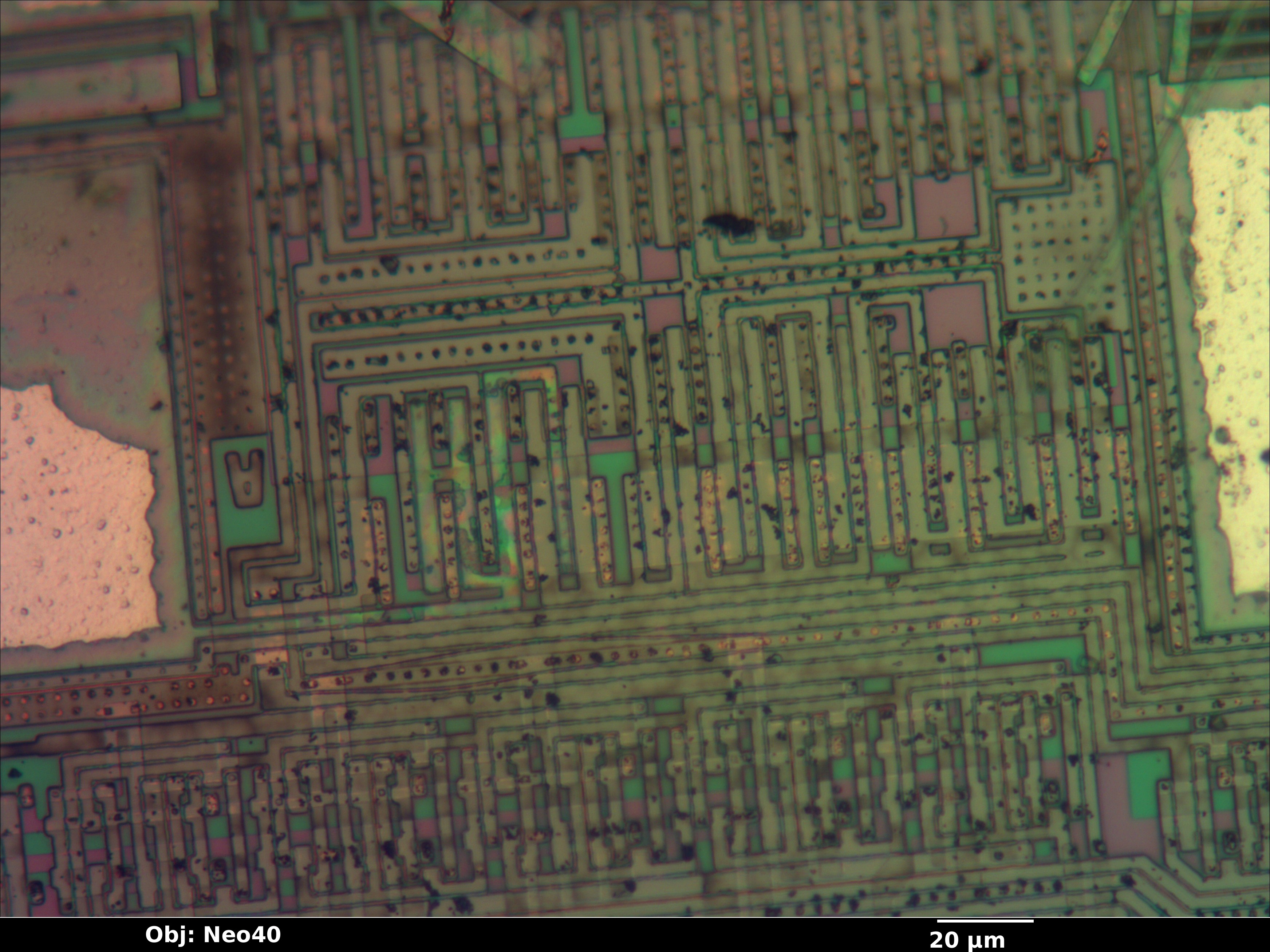

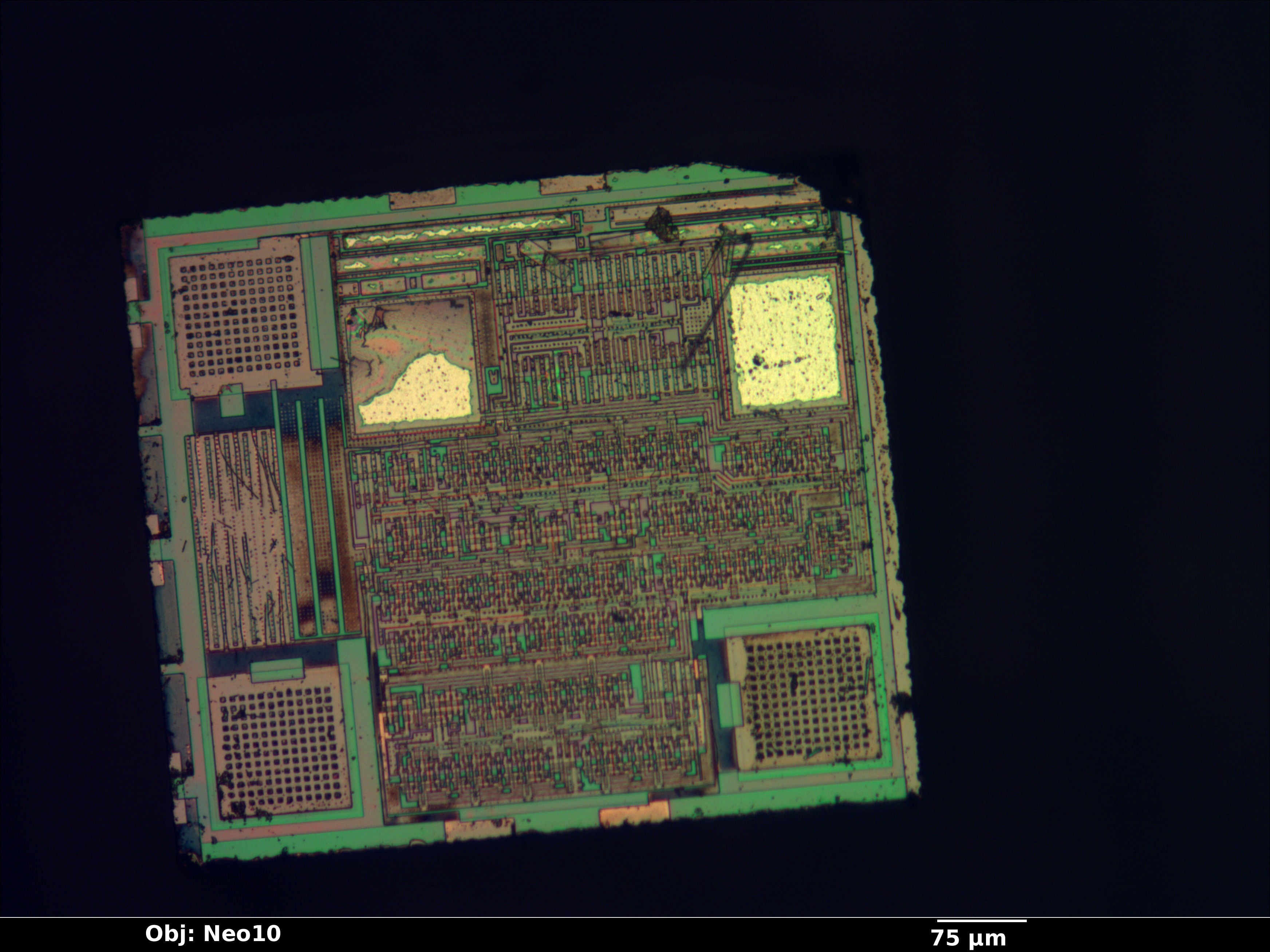

Delayered to M1 barrier with HF:
Alternate controller die
Someone on Hackaday found an alternate controller in a similar chip that seems LFSR based: http://i.imgur.com/7cafiA3.jpg
Definitely not the same chip.
