azonenberg:atmel:at29c010a

collection az, vendor atmel, year unknown, type memory, type memory/flash, type memory/flash/nor, foundry unknown, tech unknown

1-megabit (128K x 8) 5-volt Only Flash Memory

Large, nonplanarized 2-metal process.

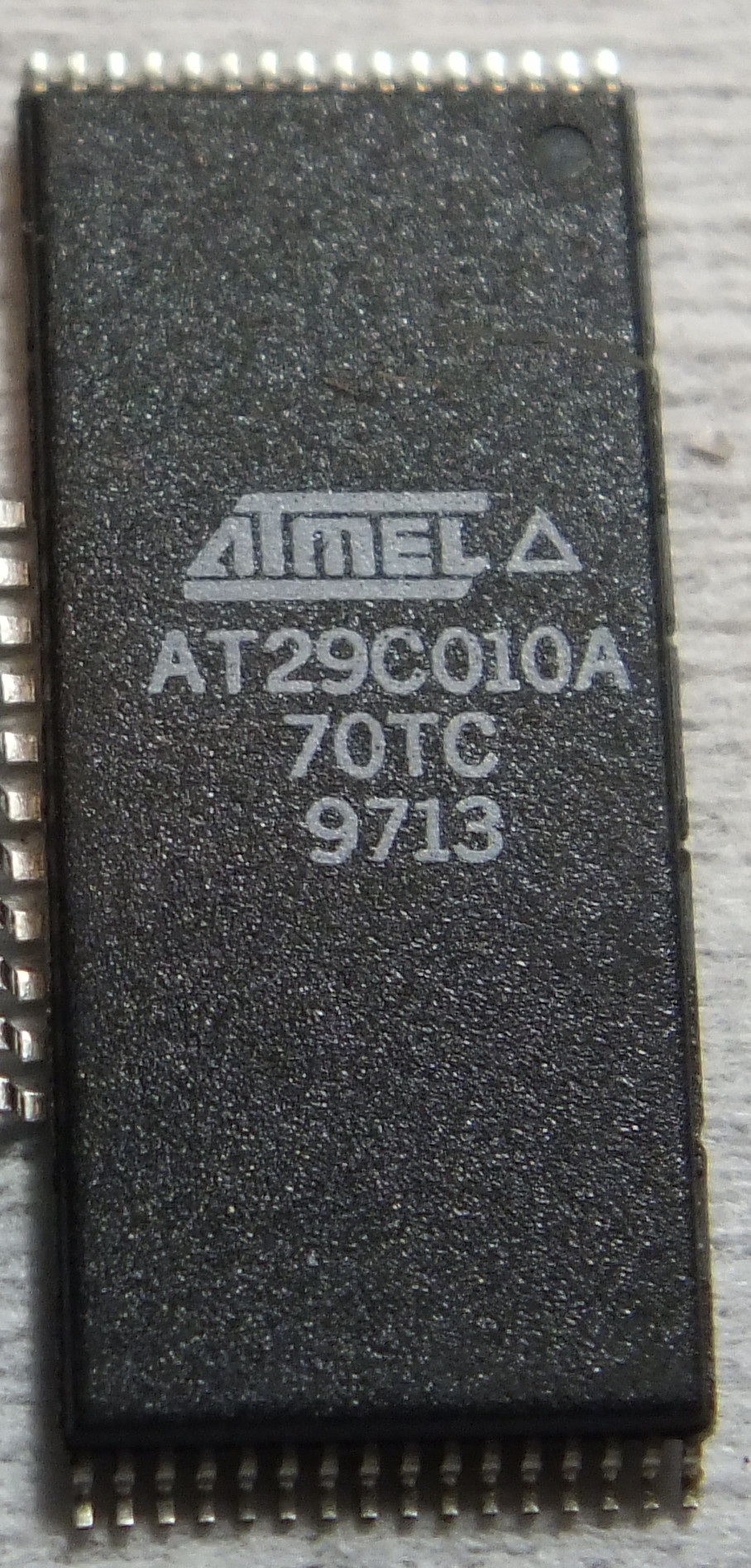

Package

Markings:

  (ATMEL)
  AT29C010A
  70TC
  9713

Die

Size is approximately 6320 x μm ( mm²)

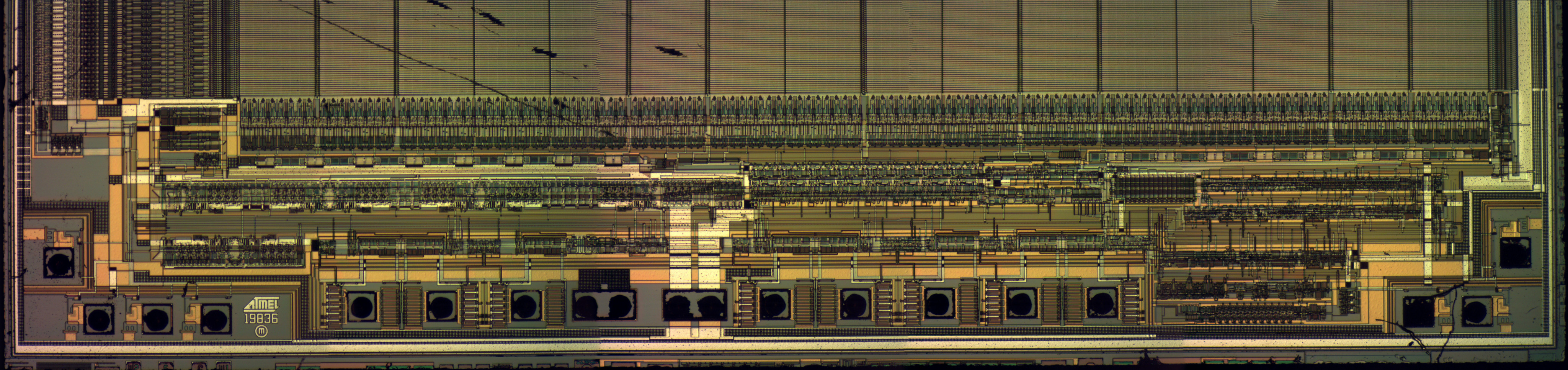

Top of array:

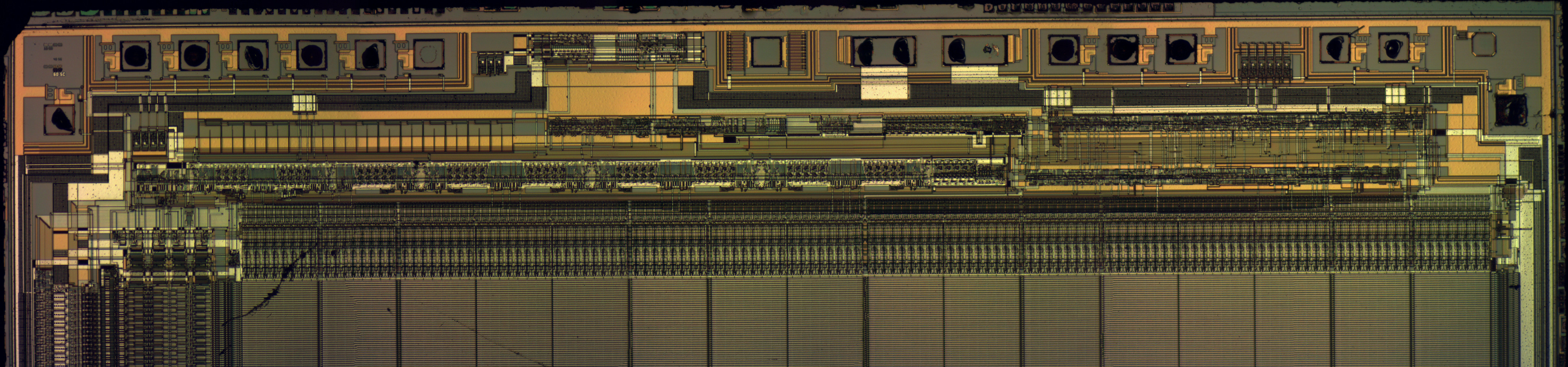

Bottom of array:

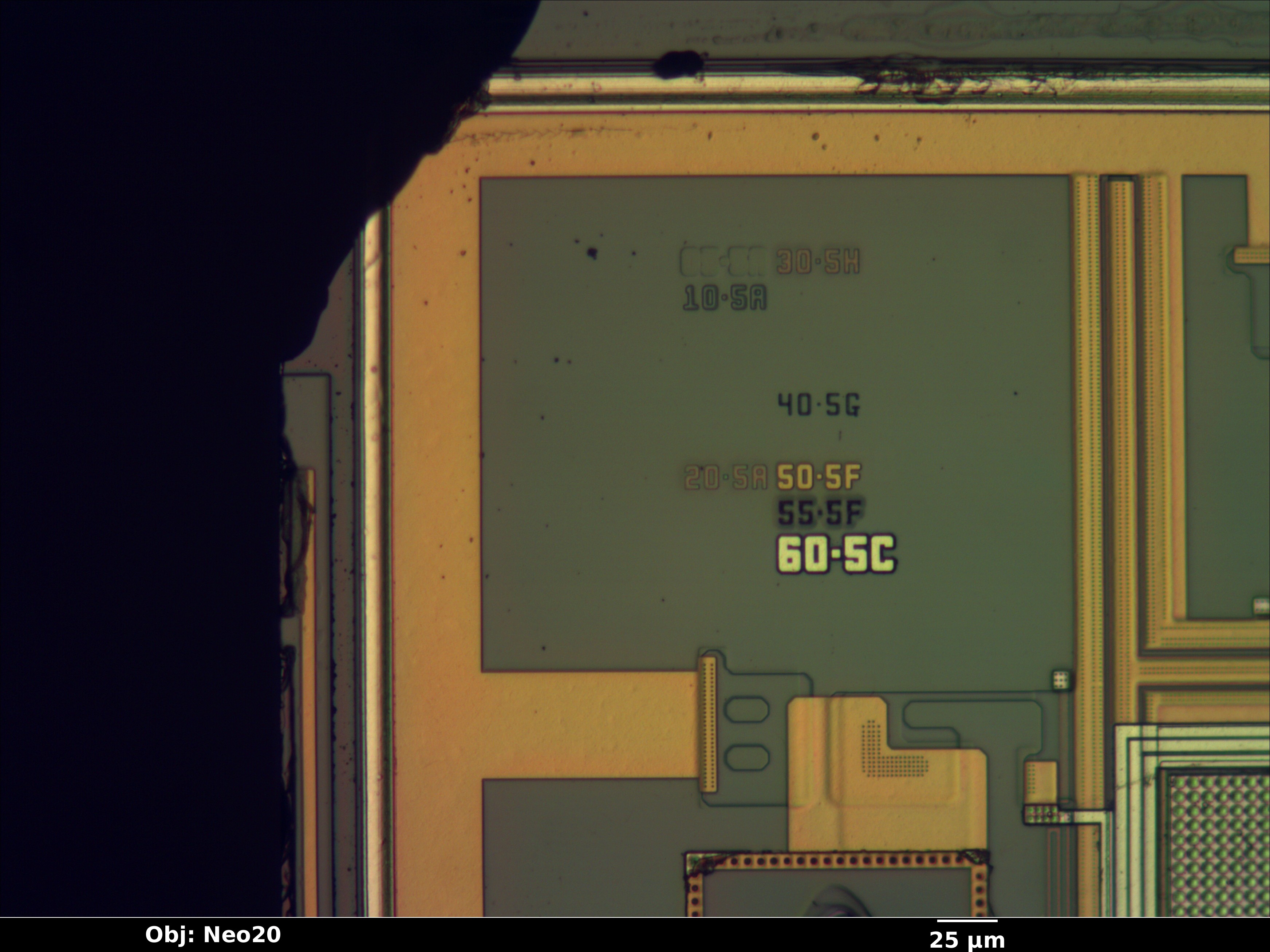

Mask rev markings:

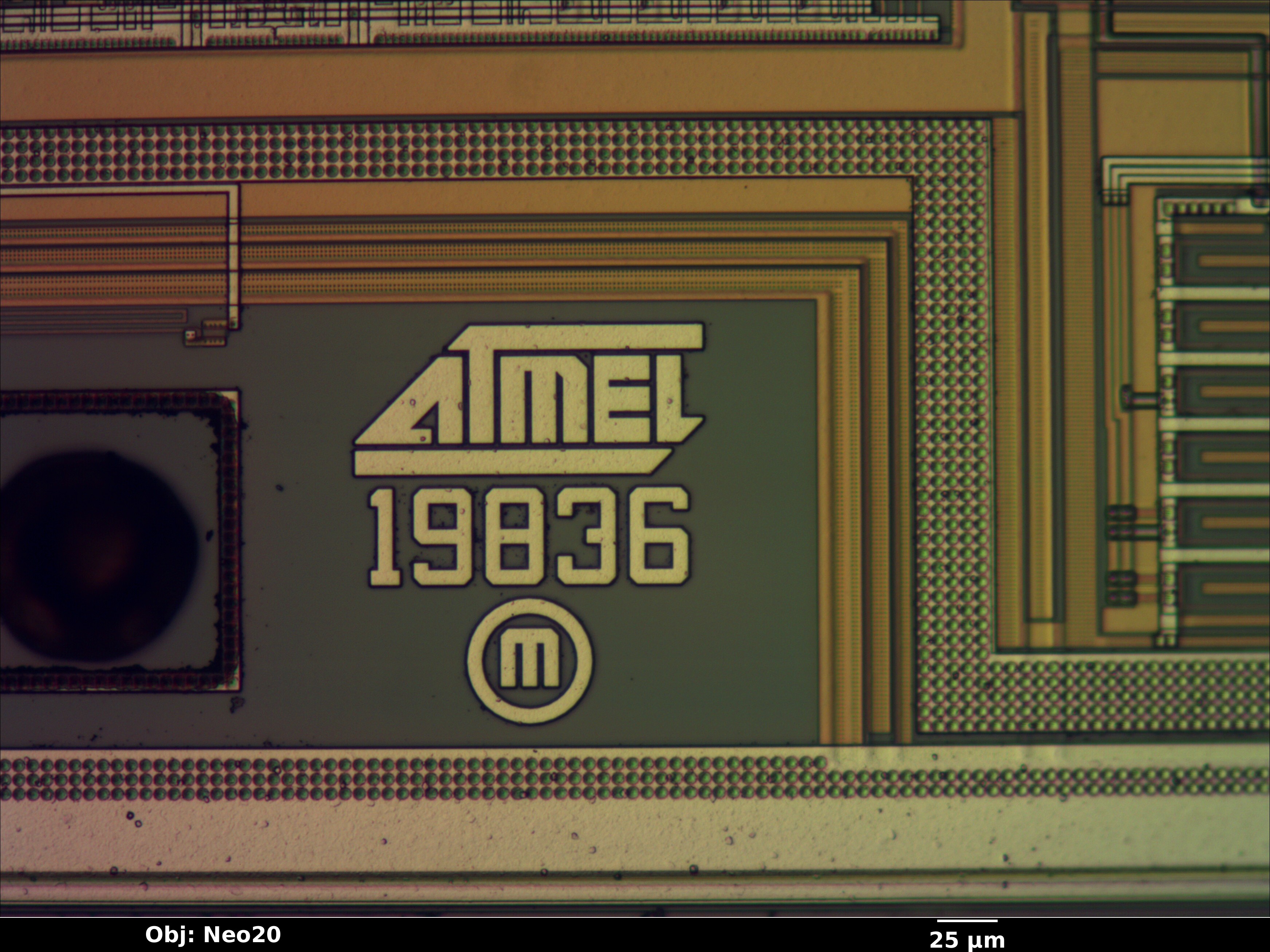

Atmel logo

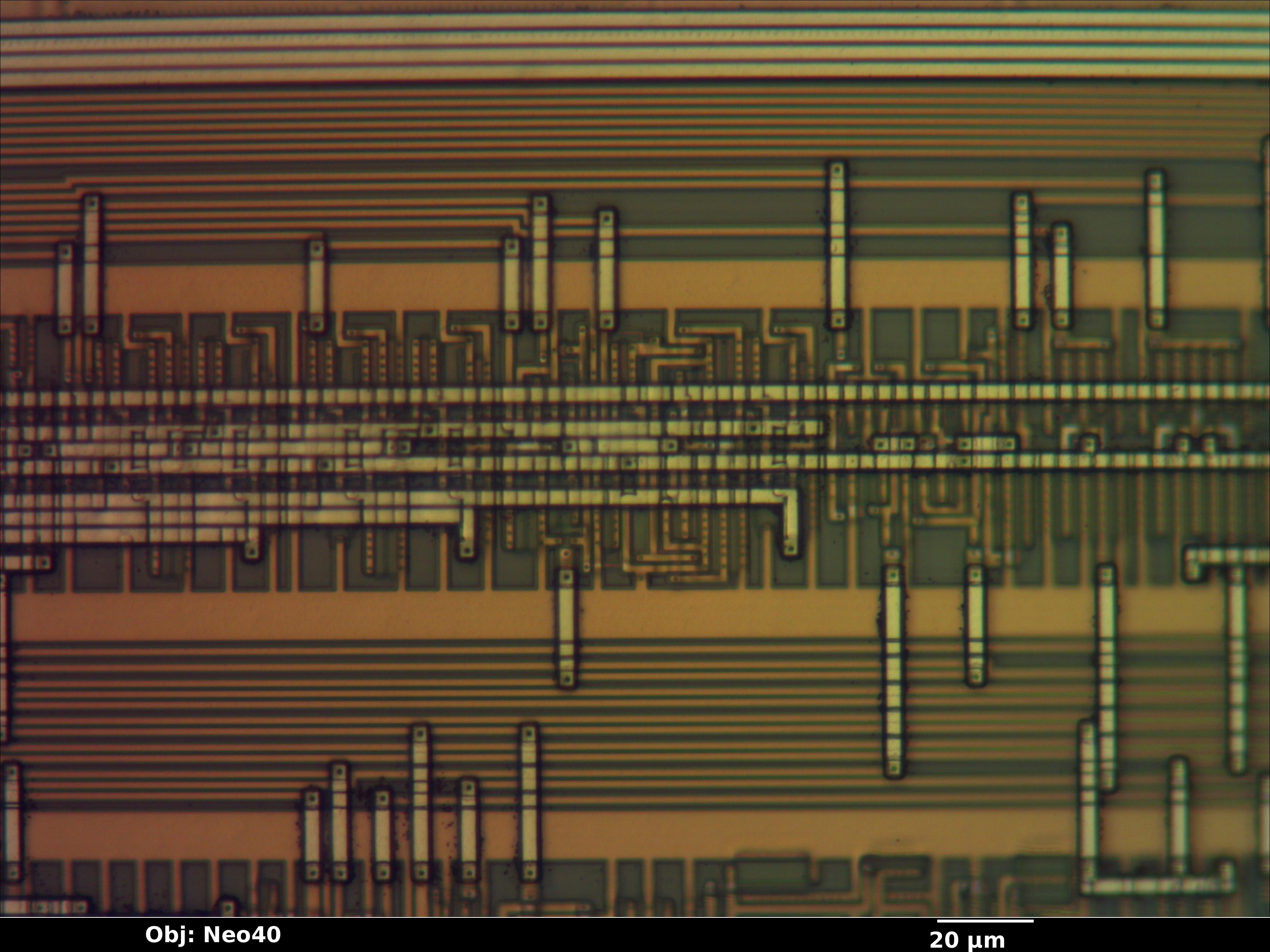

Random logic

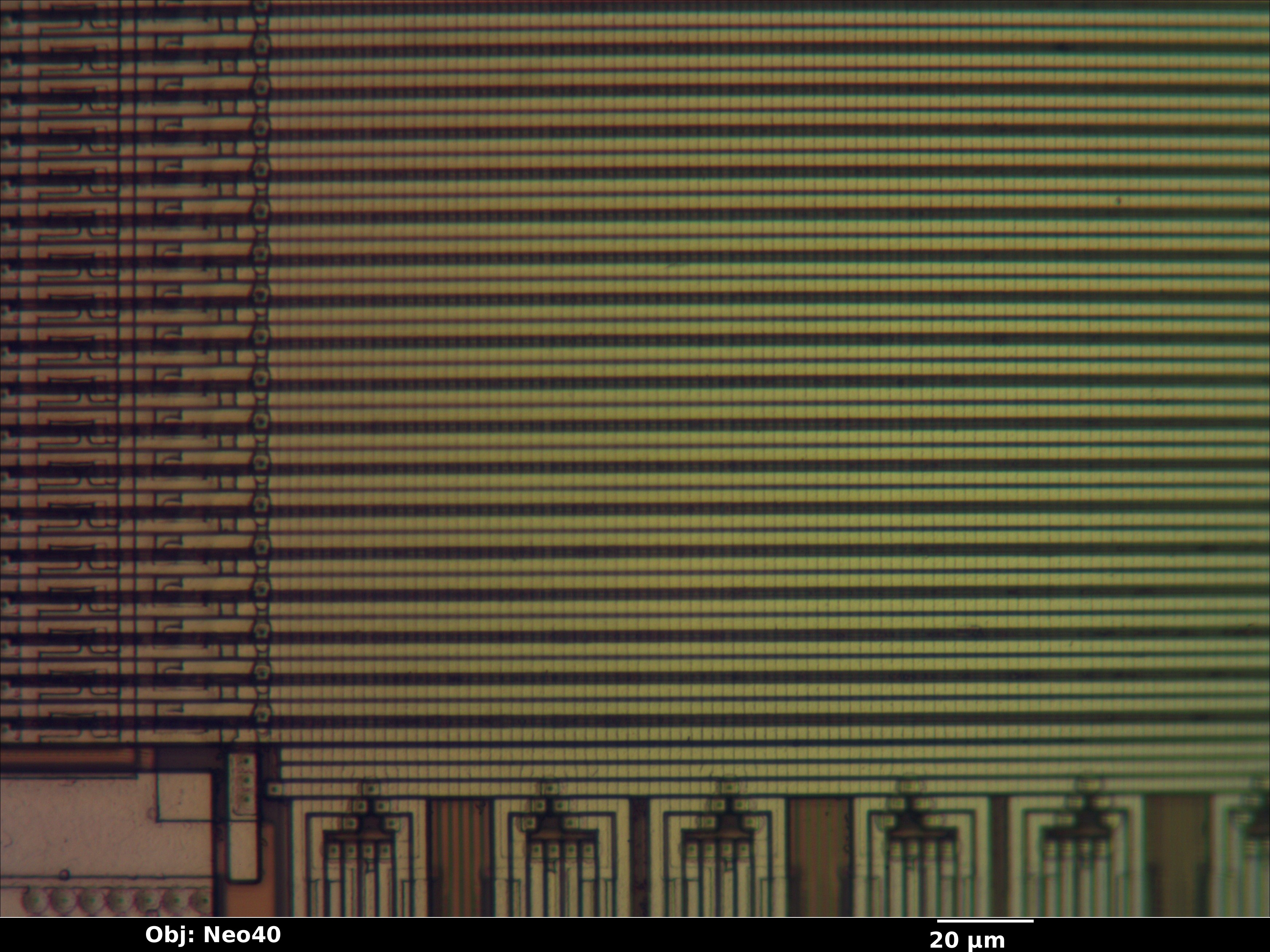

Corner of array
